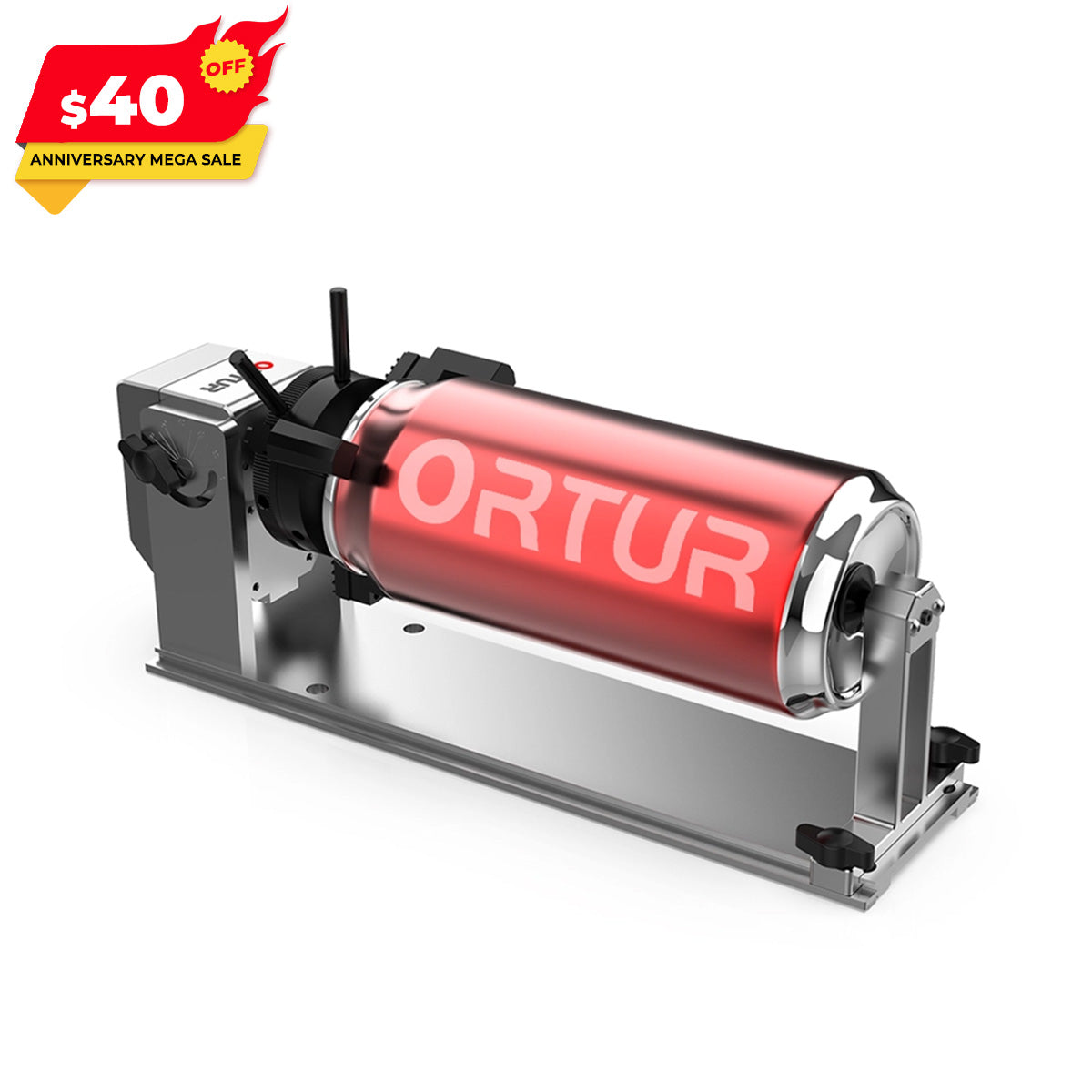

Ortur Y-axis Rotary Chuck for Laser Engraver (YRC1.0)
- Multi-mode Y-axis rotary chuck.
- Elevation angle can be adjusted 180°, rotate 360° without disassembly.
- Can be used for rings, cups with handles or irregular items, etc.
- Engraving accuracy 0.45°, engraving diameter range up to 120mm.
- Aluminum alloy material, one-piece structure.
- Easy to install, sturdy and reliable.
Multi-mode Function
Supports chuck, ring, and sphere rotation modes. Multiple modes can use more than 90% cylindrical and even irregular objects to meet all your needs.
Adjustable Stable Design
One-piece frame structure design, the engraving speed can still maintain ultra-high precision and stability at 360°/s. It supports 180° angle adjustment and 360° rotation engraving of various beverage cans, baseballs, goblets, wine bottles, and other cylindrical and irregular items.
Adjusted Diameter
Extend and shrink the size that you want by scrolling the chuck or assemble the jaw on different holes. Ortur Y-axis rotary chuck engraving diameter range is 1 to 120mm, Sphere is 25 to 150mm and the ring is 11 to 100mm, can use your creativity on most cylindrical objects.
Connecting the Machine
Easy to install, easy to use, direct power supply and control through the laser engraver.
Watch the Video
323mm×126mm×156mm
190mm×150mm×56mm
129mm×184mm×81mm
Ortur H20, OLM3, H10, OLM3 LE, OLM2 Pro S2, OLM2 S2, AL2
Ortur H20, OLM3, H10, OLM3 LE, OLM2 Pro S2, OLM2 S2, AL2
Ortur H20, OLM3, H10, OLM3 LE, OLM2 Pro S2, OLM2 S2, AL2
✔
x
x
- Chuck: 1-120mm
- Sphere: 25-150mm
- Ring: 11-100mm
- Cylinder: 1-150mm
- Goblet: 1-100mm
- Rod-shaped: 1-150mm
- Cylinder: 8-110mm
- Goblet: 1-100mm
✔ Elevation angle adjustable up to 180°
✔ 360° rotation
✔ Compatible with rings, cups with handles, and irregular items
✔ 6-gear adjustment
✔ Supports 360° engraving of cylindrical objects (e.g. cans, wine glasses, bottles, baseballs)
✔ Cylindrical object engraving for daily needs
✔ 7 gear positions for width adjustment of different diameters
