Ortur LU2-4 LF Laser Module 24V/2A for Ortur & Aufero Laser Engraver
- Tariff (VAT) free for all customers.
- Compatible with laser engravers that support 24V/2A.
- All orders will be shipped within 48 hours. (Except weekends)
- The LU2-4 Laser Module enjoys a 30-day return guarantee and a one-year warranty.
Air Assist
With an air nozzle, the LU2-4 LF laser module can use with an air pump.
It effectively reduces yellow and black edges when cutting and gives better cutting results.

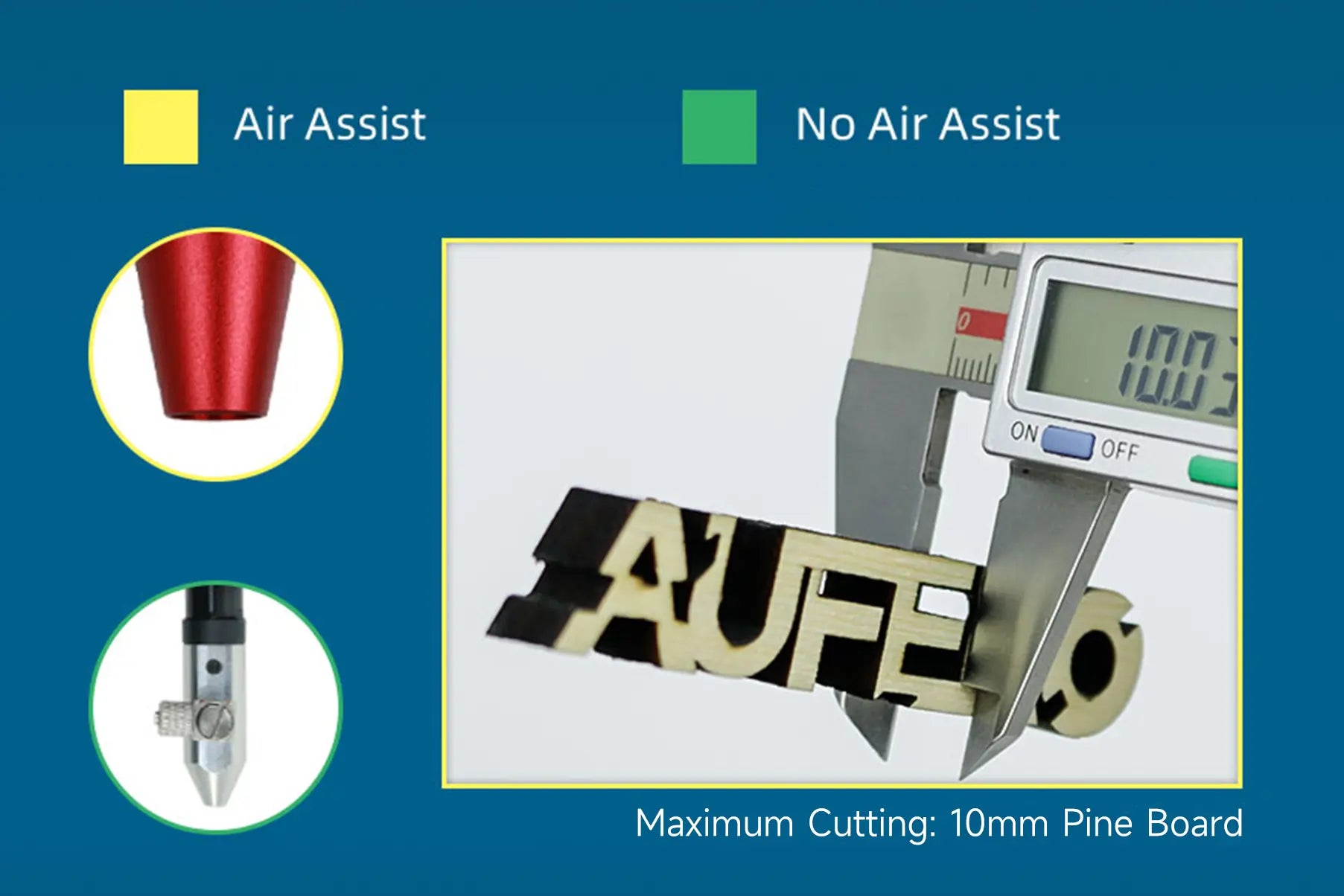

Great Cutting Performance
LU2-4-LF is good at engraving and better at cutting, andcould support a higher speed.
Laser Filtered
The laser shield effectively filters out laser light for safe and comfortable engraving.

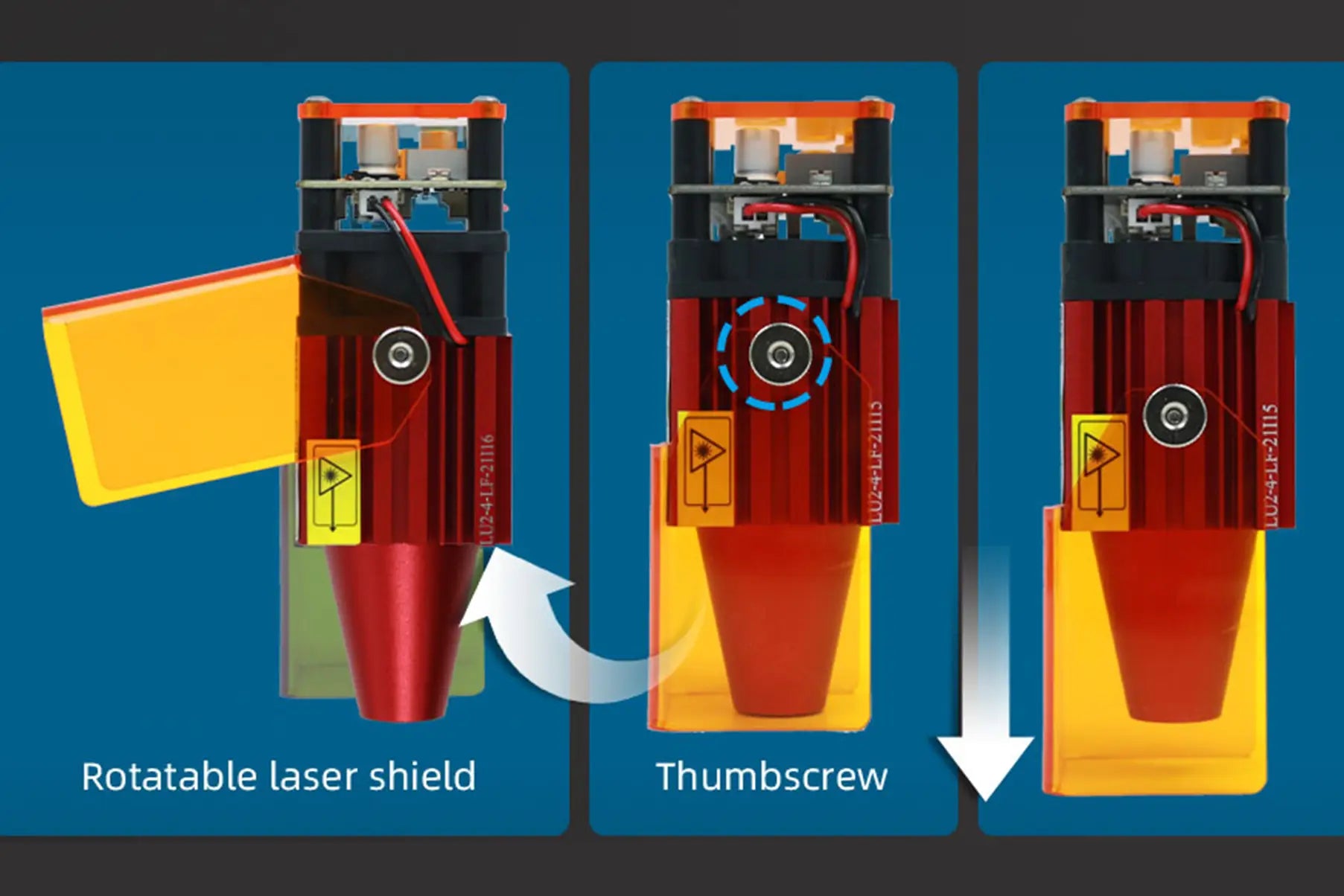

Convenient Adjust
By loosening the thumbscrews on either side, you can adjust the up and down position of the laser shield, or the angle of rotation, to suit your personal usage habits.

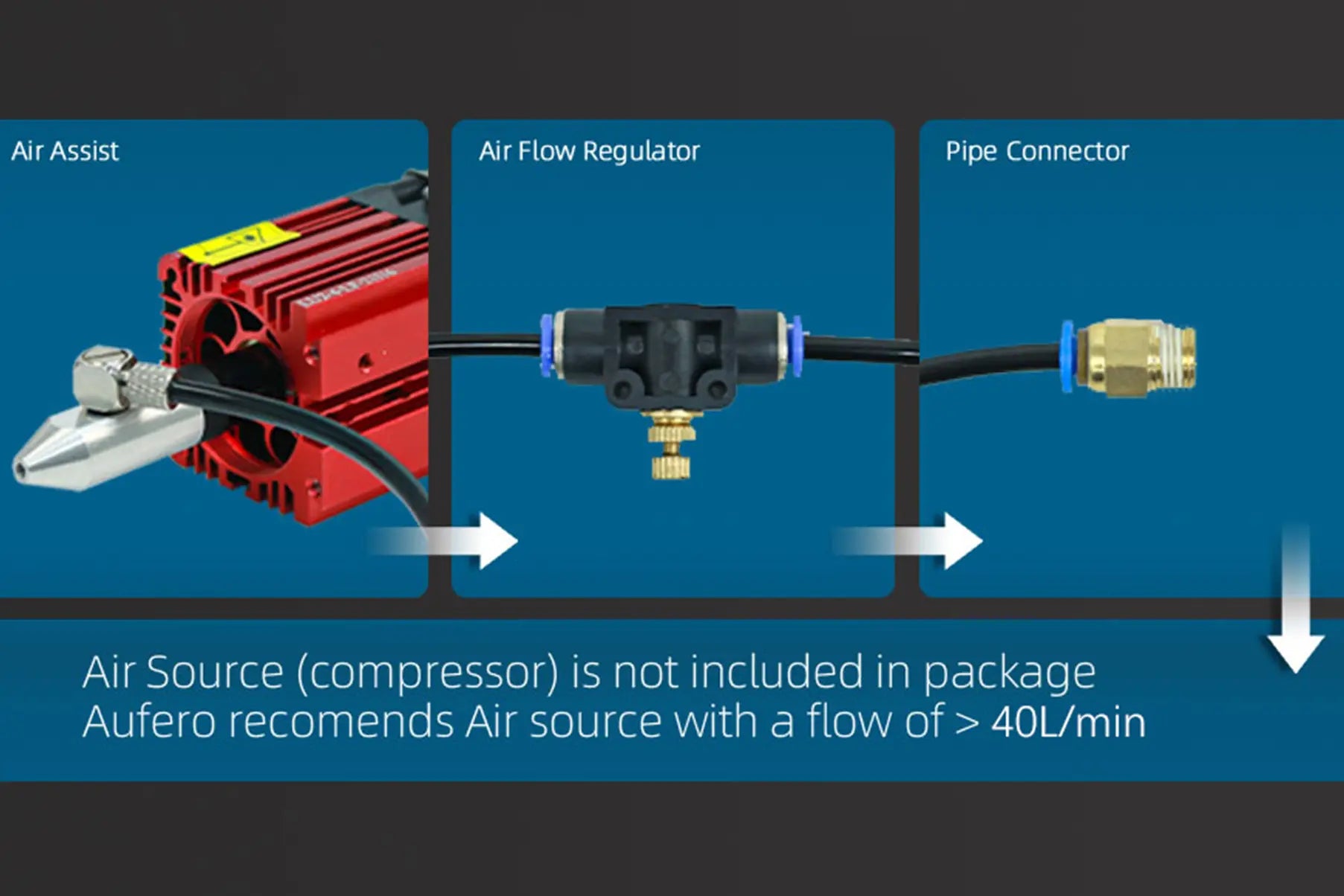

Air AssistAssembly Method
Air assist needs to be used in cutting situations, easy to install and simple to use.Ortur recommends airflow settings above 40 L/min.
(Air pump is not included in package.)
Strong Heat Dissipation System
With the aluminum housing and radiator, heat can be dissipated quickly and the machine will not overheat even after long hours of operation.
Compare
Product Specification
5.5W
5.5W
0.17mm*0.25mm
0.12mm*0.15mm
50mm
30mm
Manual
Manual
450±5nm
450±5nm
24V / 2A
24V / 2A
Optical Compression
Optical Compression
✔
❌
✔
✔
>10,000H
>10,000H
Every 30 hours
Every 30 hours
Cotton wetted with alcohol and wipe off the dust and dirt on the surface of the lens, wait for the alcohol to evaporate
Cotton wetted with alcohol and wipe off the dust and dirt on the surface of the lens, wait for the alcohol to evaporate

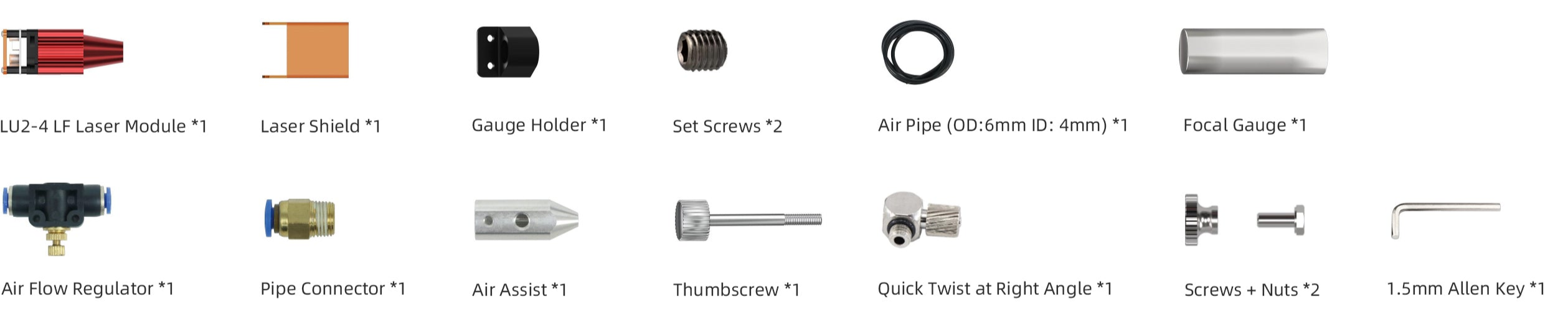

Packing Lists
Richer Application Scenarios
Basic Accessories
Significantly improves the engraving and cutting experience
Raising the Machine Height
Suitable for engraving and cutting taller objects, can be used with the Y-axis series
Multi-mode Y-axis Rotary Chuck
Suitable for engraving and cutting most cylinders, spheres and rings
For Safer Engraving
Provide you with a more secure engraving and cutting experience
