40W LU3-40A Laser Module for Ortur Laser Engraver
- Christmas Sale: Get $50 off for 40W laser module. Code: MC50
- Maximum 40W output power, 40W/20W one-touch switching.
- Engraving 380+ colors on stainless steel, Square-spot 0.1*0.15mm, presenting 256 kinds of gray engraving.
- It is recommended to use with an air pump for better results and longer life.
- Powerful fan paired with heat pipe cooling system effectively reduce working temperature, ensure the best working performance.
- Only for OLM3, OLM3 LE laser engravers.

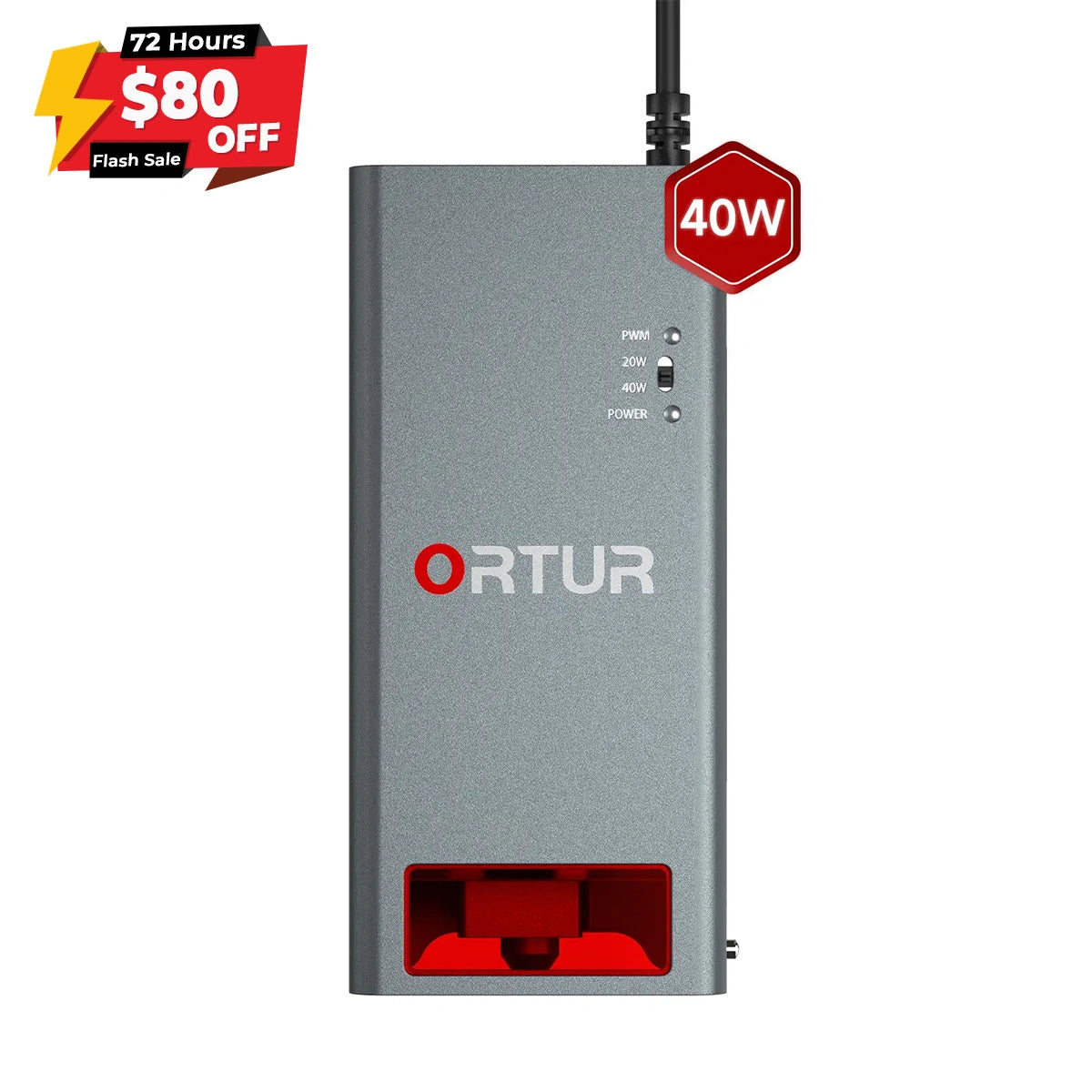

Ortur 40W Laser Module LU3-40A
Engineered for Superior Cutting Performance
0.3mm Stainless Steels Cutting One Pass
15mm Acrylic Sheet Cutting One Pass
15mm Plywood Cutting One Pass
Maximum Thickness of One-pass Cutting
40W
20W
20mm
12mm
15mm
8mm
15mm
5mm
0.3mm
/
Seamless Power Adjustment for Versatile Needs
Switch between 20W or 40W power with one button, quickly adjust power levels to meet different material needs, offering versatility and efficiency.
Sharper Engraving Effects
Switch to 20W mode for greater engraving clarity
Ortur
Other
Amazing Cutting Efficiency
Switch to 40W mode for faster and more accurate cutting results
More Colorful Engraving on Stainless Steel
The laser module forms different oxidation layers on stainless steel, creating 380+ colors
Internal Structure Function
Laser Filtering Visual Window
Special coating lens can block 97% 450nm wavelength of laser, create a safe working environment and protect your eyes (Note: Must wear goggles when using the laser).
Quick Focusing Stick
Equipped with a quick focusing rod, it allows for one-step focusing, convenient and time-saving.
Heat Pipe Cooling System
The combination of powerful fans and a heat pipe cooling system effectively reduces temperature, ensuring long-term stable operation of the aser module.
Self-cleaning Shading Lens
By directing air from the heat dissipation duct during operation, it enables cleaning of the interior and the window lens, preventing dust and smoke from affecting the vision.
Efficient Air-assisted Solution
The 40W laser module has a built-in air tube with air assist, and when used with an air pump (50L/min), the air flow can be adjusted through a throttle valve, which reduces burn marks by 50% and improves the quality of the cutting.
All Levels Compatible with Your Creativity
Inspiraesth offers a simple or professional mode selection for your every engraving stage.
Richer Application Scenarios
Basic Accessories
Significantly improves the engraving and cutting experience
Raising the Machine Height
Suitable for engraving and cutting taller objects, can be used with the Y-axis series
Multi-mode Y-axis Rotary Chuck
Suitable for engraving and cutting most cylinders, spheres and rings
For Safer Engraving
Provide you with a more secure engraving and cutting experience
Package Contents
FAQ
How to realize power switching？
One-touch power adjustment via a switch on the module.
Can I switch the power during use?
Yes, it can be switched normally, but it is not recommended to use it this way.
Which engraving machine can LU3-40A laser module be used with?
OLM3 and OLM3 LE can be connected via OUC2.0.
Is the LU3-40A laser module compatible with other accessories?
Yes, it works with all the accessories we currently have, and we recommend using it with an air pump and a LEP 1.0 that can protect your table. Additionally, due to the higher power and heat output of the 40W laser, more dust accumulates in the laser head, so an air pump is needed to dissipate heat, blow away dust, protect the lens, and keep the project clean and burn mark free.
90% users also order YRC 1.0 for engraving cylindrical items such as tumblers, Christmas balls and rings.
If you need to engrave or cut large items, you can use the extension kits, which can extend the working area.
For indoor use we recommend using it with the Enclosure 2.0 and Smoke Purifier 1.0 to keep indoor air clean.
What is the principle of switching 20W power to 40W power?
It is realized by controlling the switches, 4 diodes emit light in 20W mode, and all 8 diodes emit light in 40W mode.
