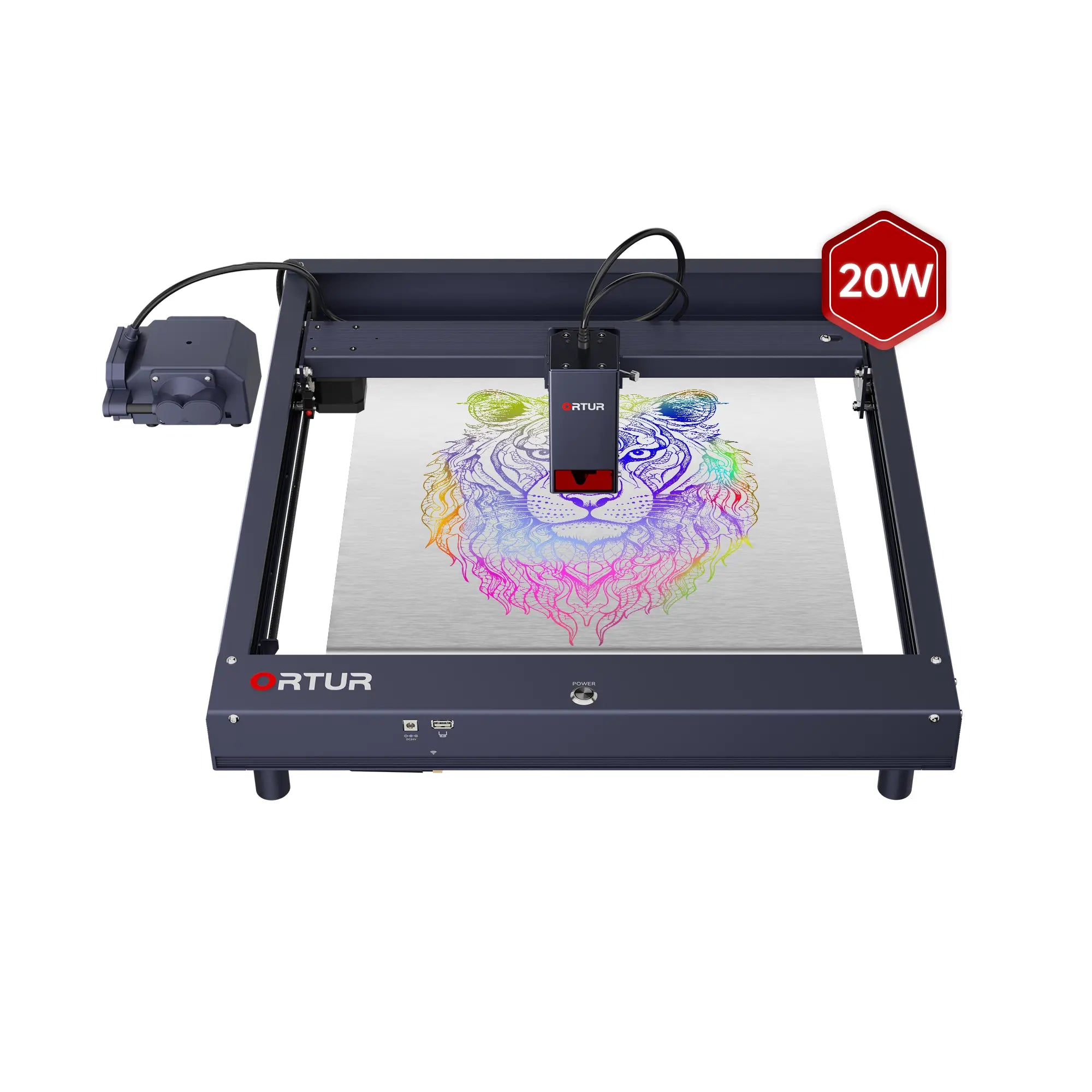

Ortur Laser Master H10 Gravur & Schneide maschine 20.000 mm/min 20W
- Vormontiert Desktop-Graveur für Ihre Bequemlichkeit konzipiert.
- X-Achse kreativ platt machen Konstruktion, um eine hohe Stabilität zu erreichen.
- 20W Super leistung mit freier Luftpumpe.
- 0,01 Gravur Präzision Für 256 Graustufen und 380 Farben Gravur.
- Verwenden Sie die APP von Ortur, um intelligentes Gravieren und Schneiden zu starten.
- 6 Sicherheits monitore begleiten Sie während des gesamten Arbeits prozesses.
- Die Gravur fläche von 300*300mm ist für den Desktop geeignet und leicht zu tragen.

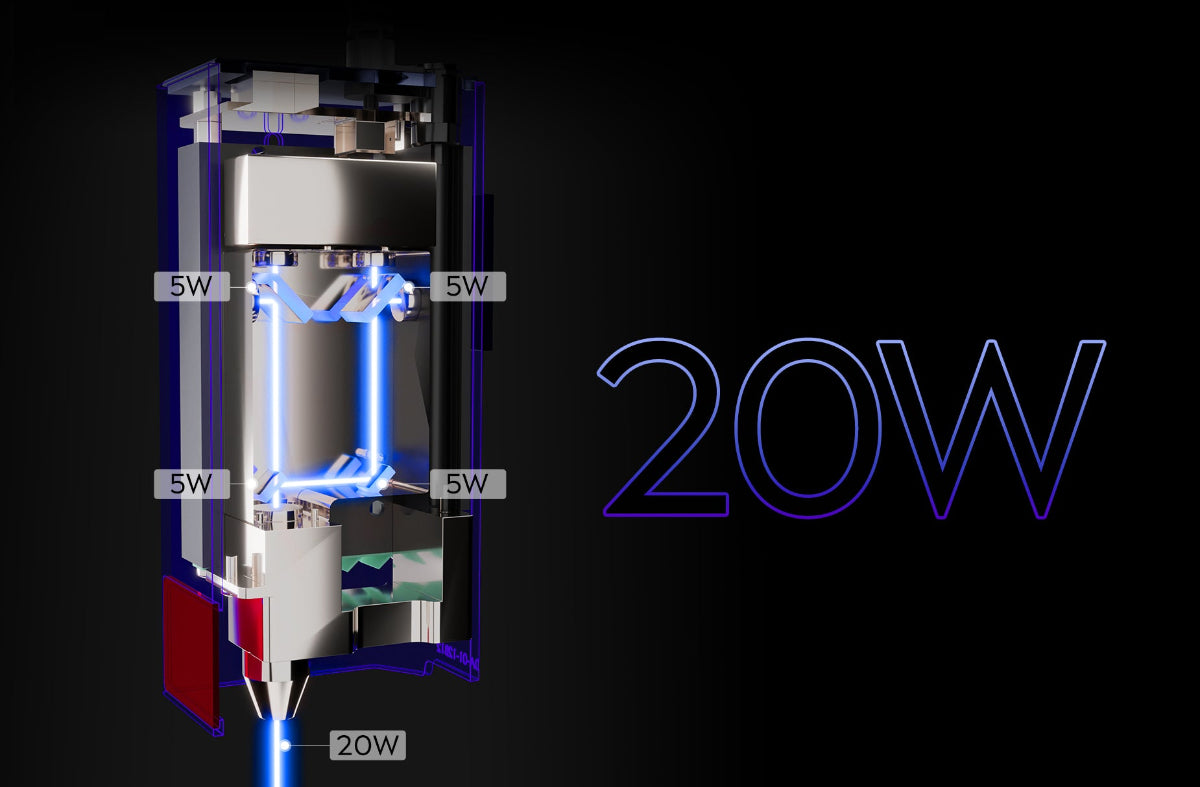

Truly Measurable 20W Output
Powerful laser cutter composed with 4 diode lasers.
What One-Pass Cutting Can Do

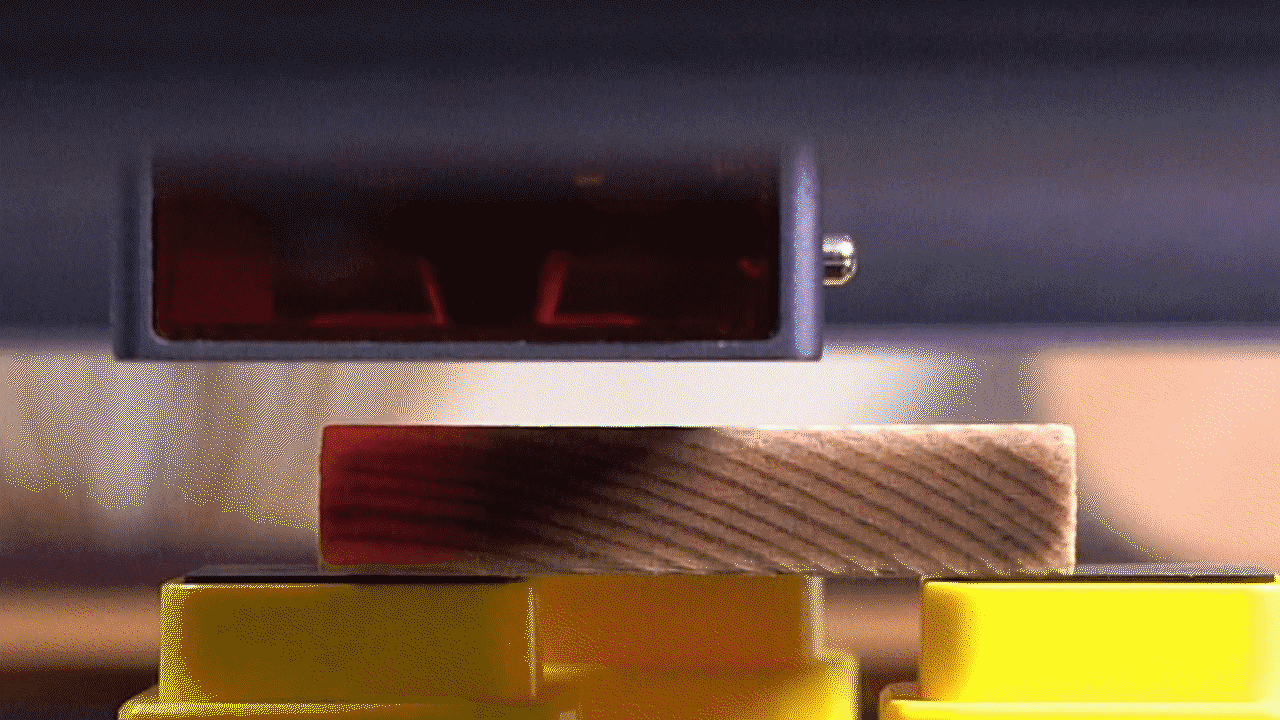

12mm Pine Cutting

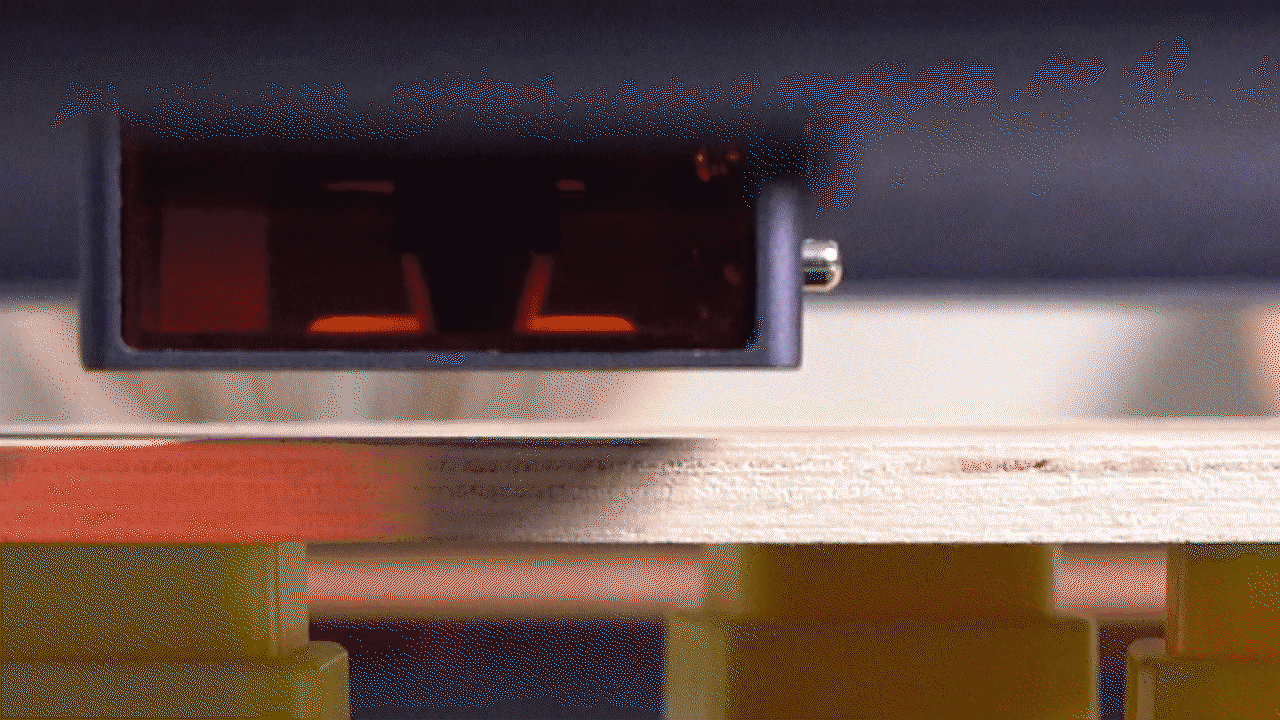

8mm Plywood Cutting

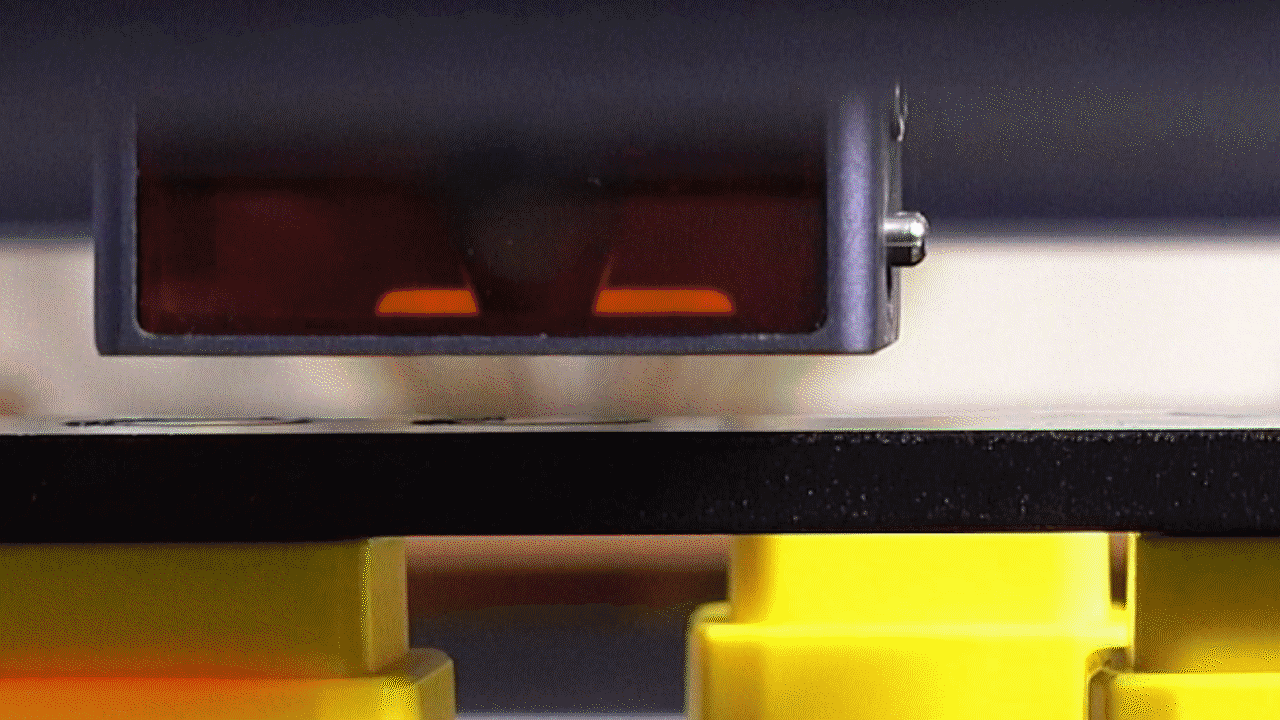

8mm Black Acrylic Cutting

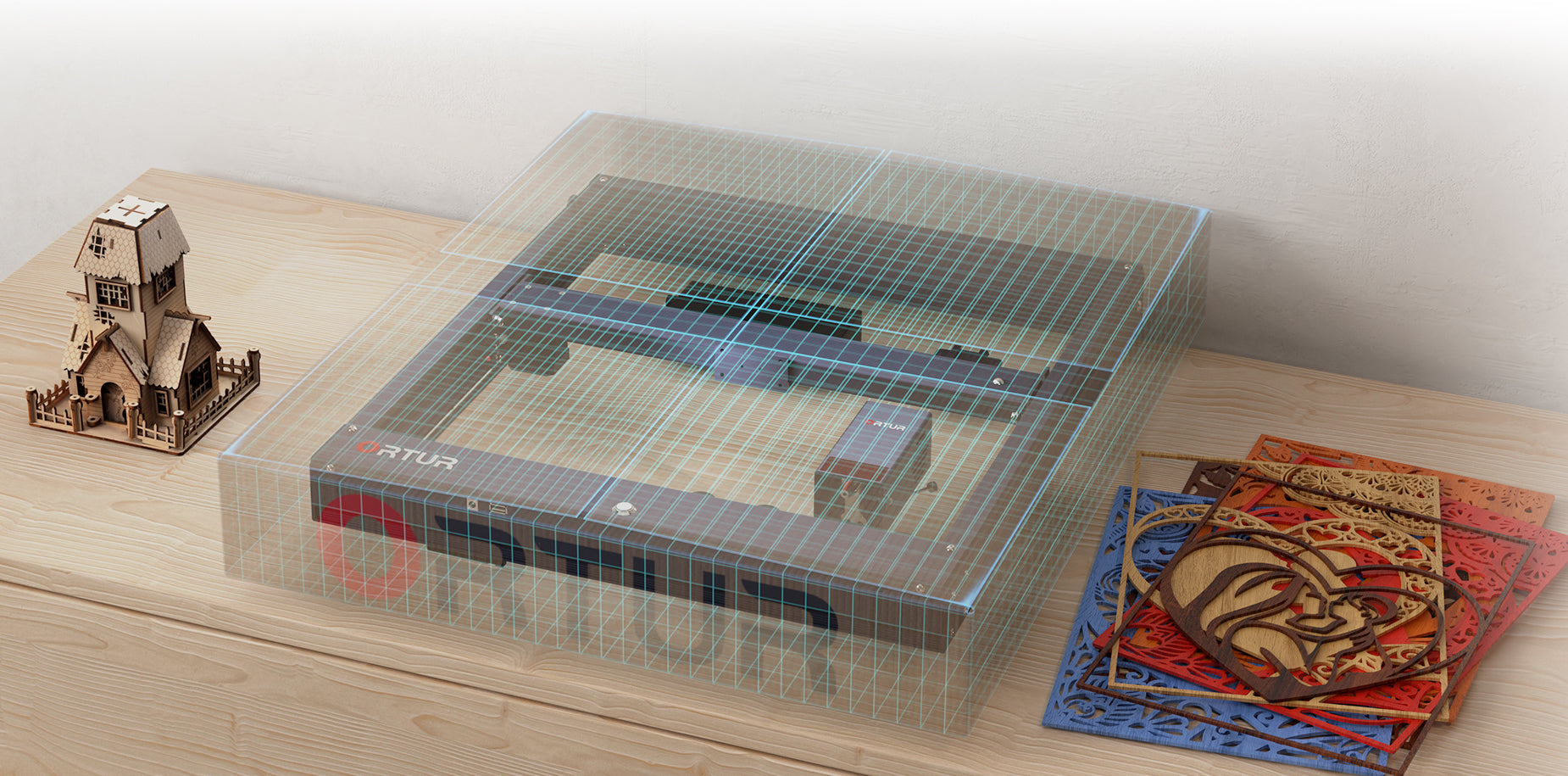

Right Out of the Box
Quickly start your engraving journey.

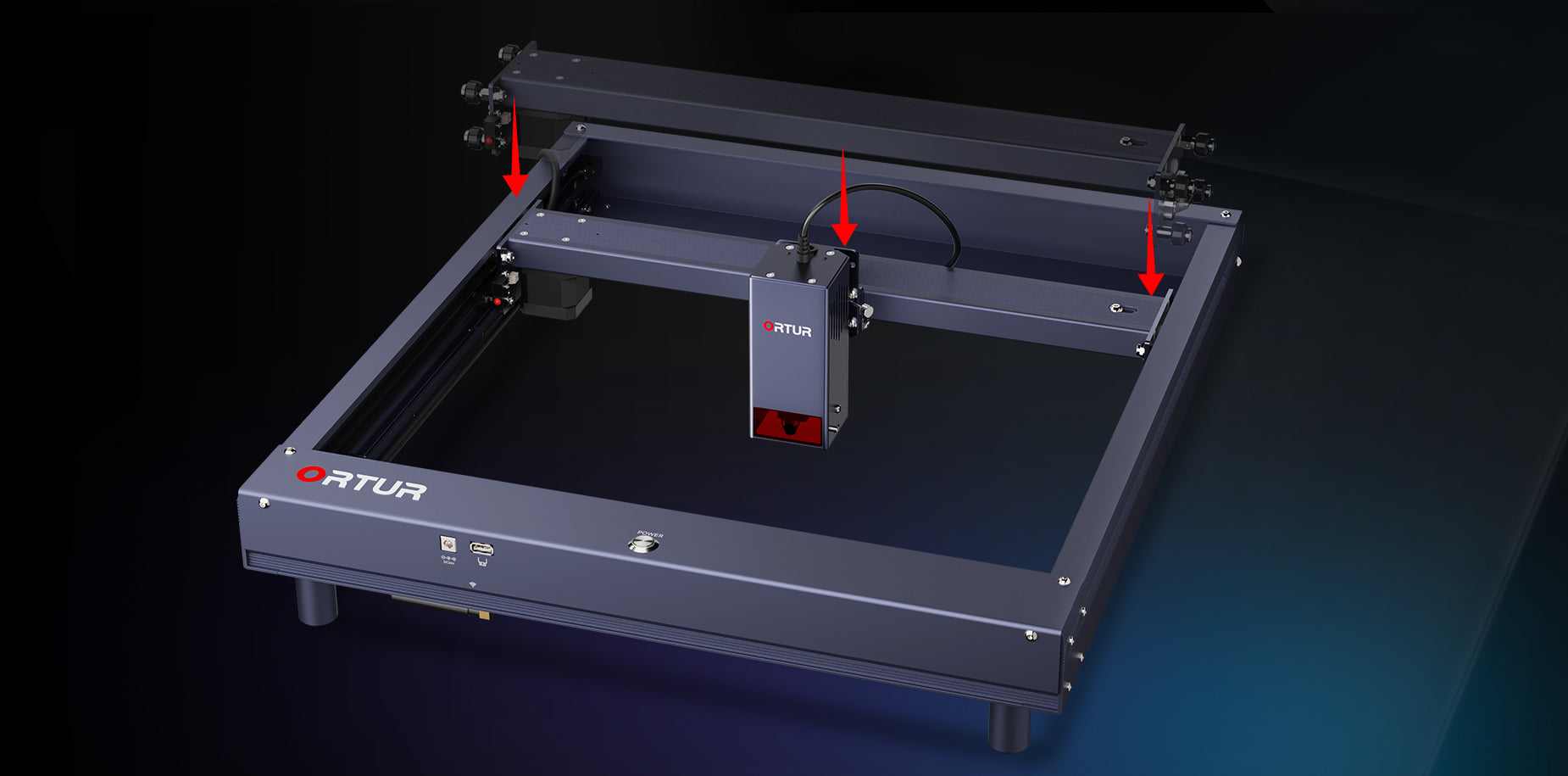

Revolutionary Flat Type X-axis Design
Low center of gravity provides stunning stability at high speeds.

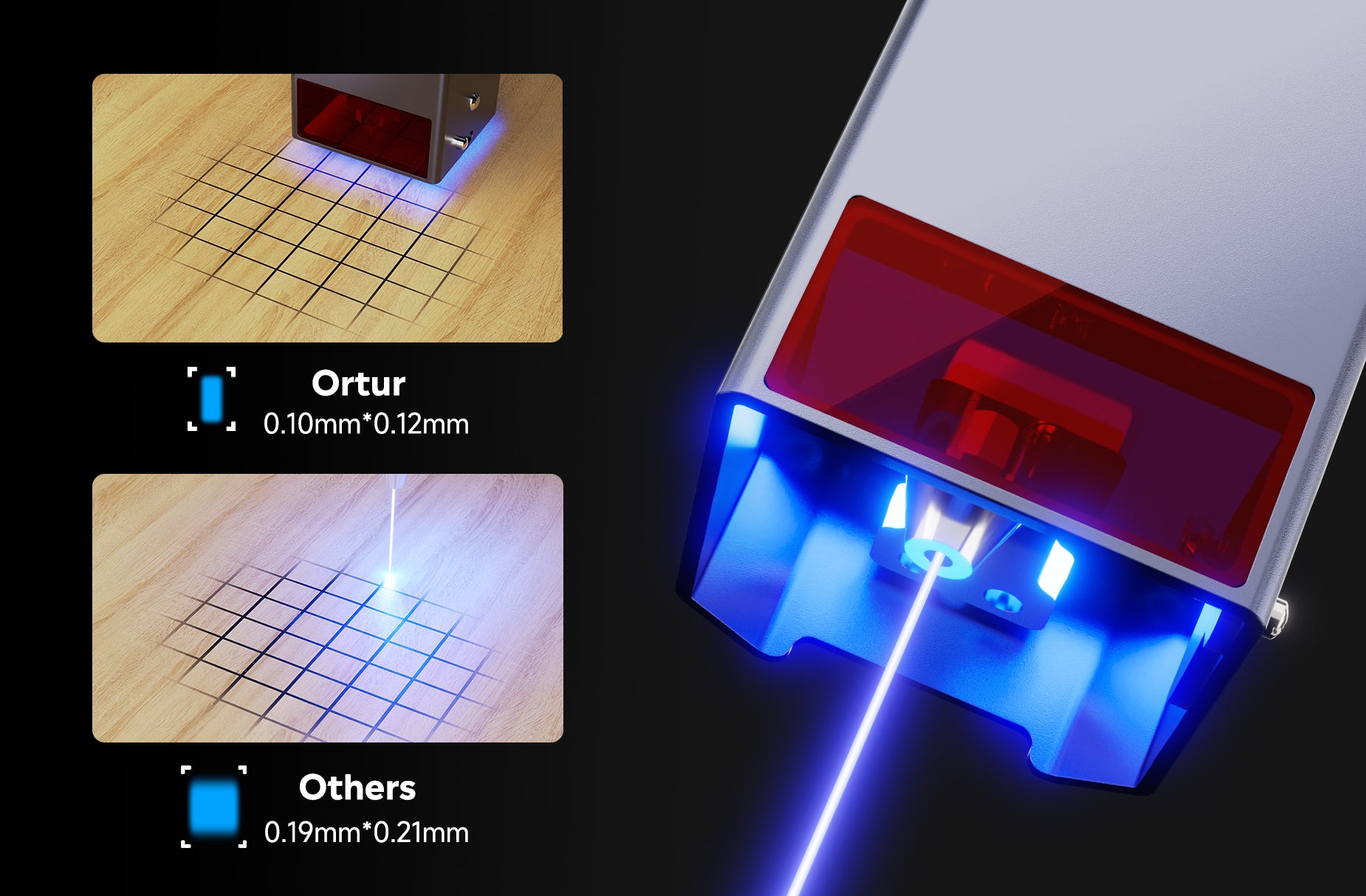

Industry Leading 0.01 mm Engraving Precision
Extremely fine engraved lines without fear to magnify any detail.

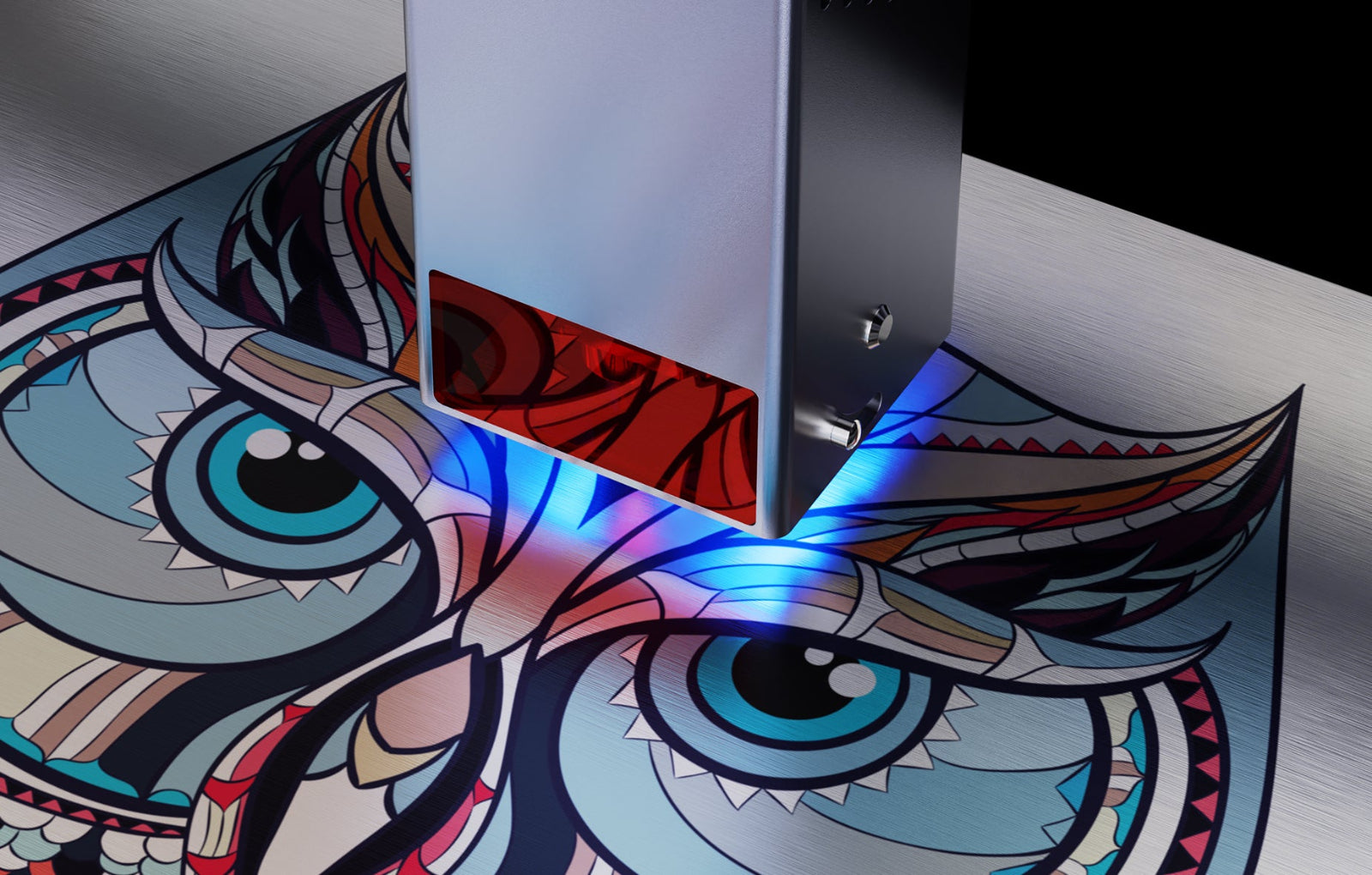

From Black & White to 380+ Colors
Use different parameters to bring different colors to stainless steel.
Accessory Compatibility

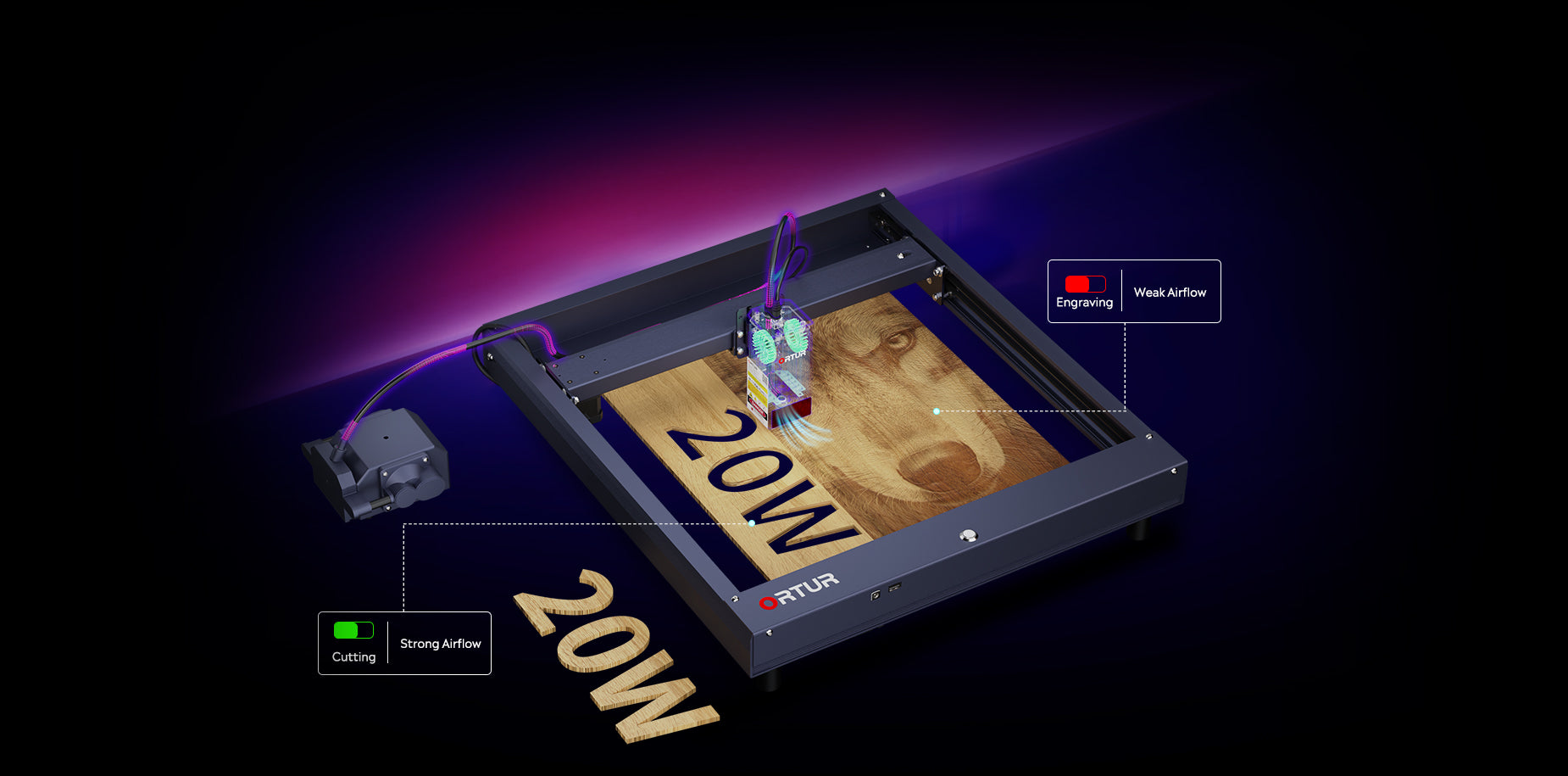

Comprehensive Air Assist Solution
Built-in air tube with 40L/min free air assist reduce burn marks by 50%.
256 Effective Grayscale Variations
Make your images transition naturally and more realistically.
Let's Dig Into More Details

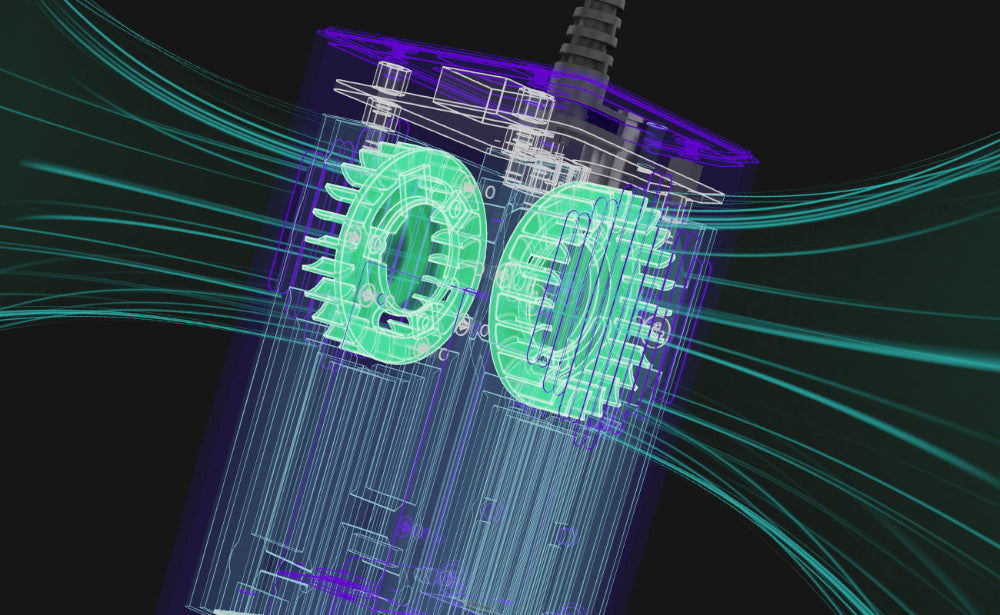

Double Cooling Fans
10,000 rpm dual fan cooling system ensures up to 10,000 hours service life.

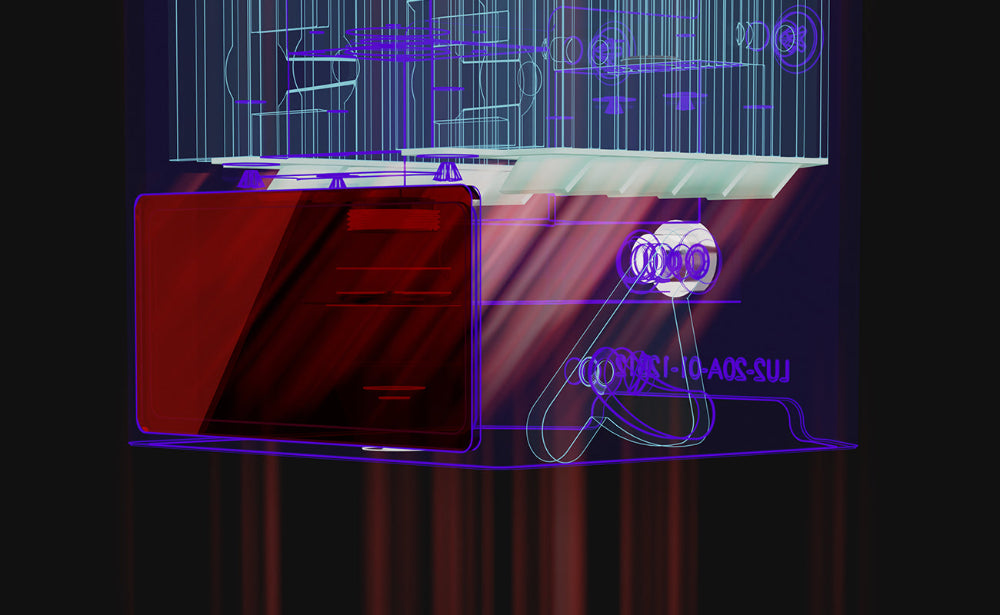

Airflow Guided Blinds
Air-guided blind with built-in air tube enables self-cleaning inside module.

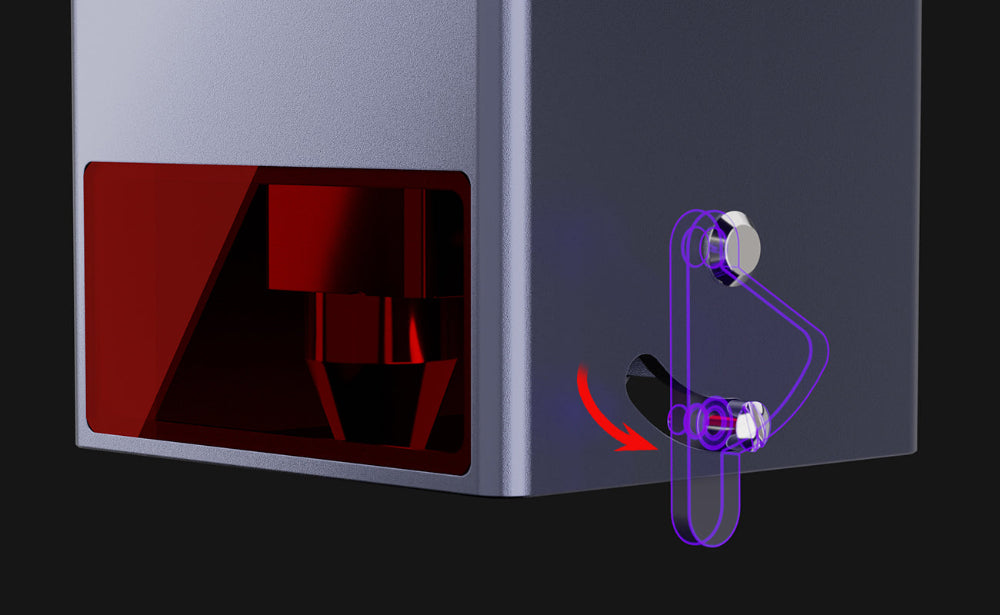

Quick Focus Stick
Equipped with quick focus stick for easy and convenient focus.

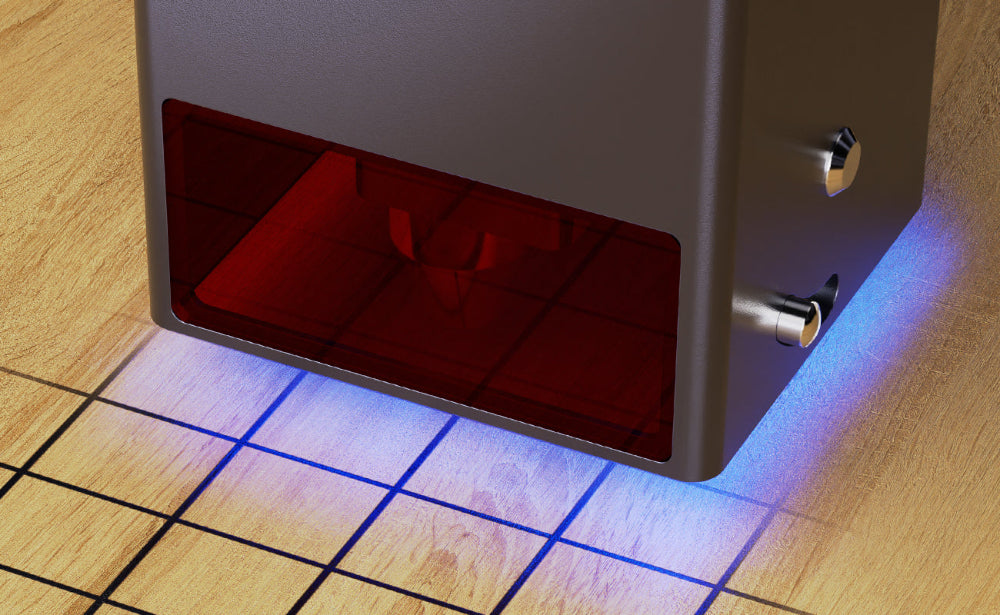

Laser Filtered Viewable Window
Glass laser shield filters 97% laser light for a safe working environment.

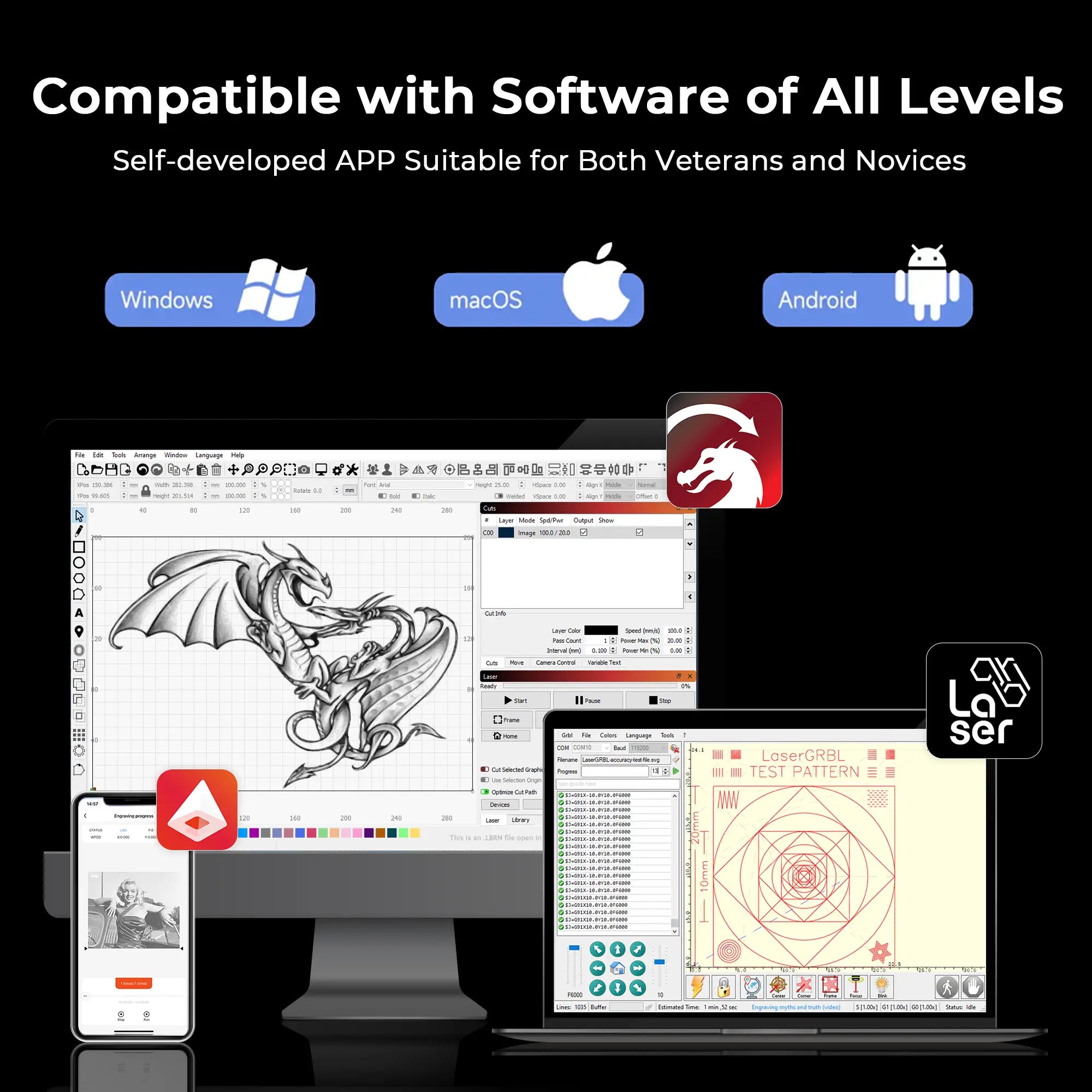

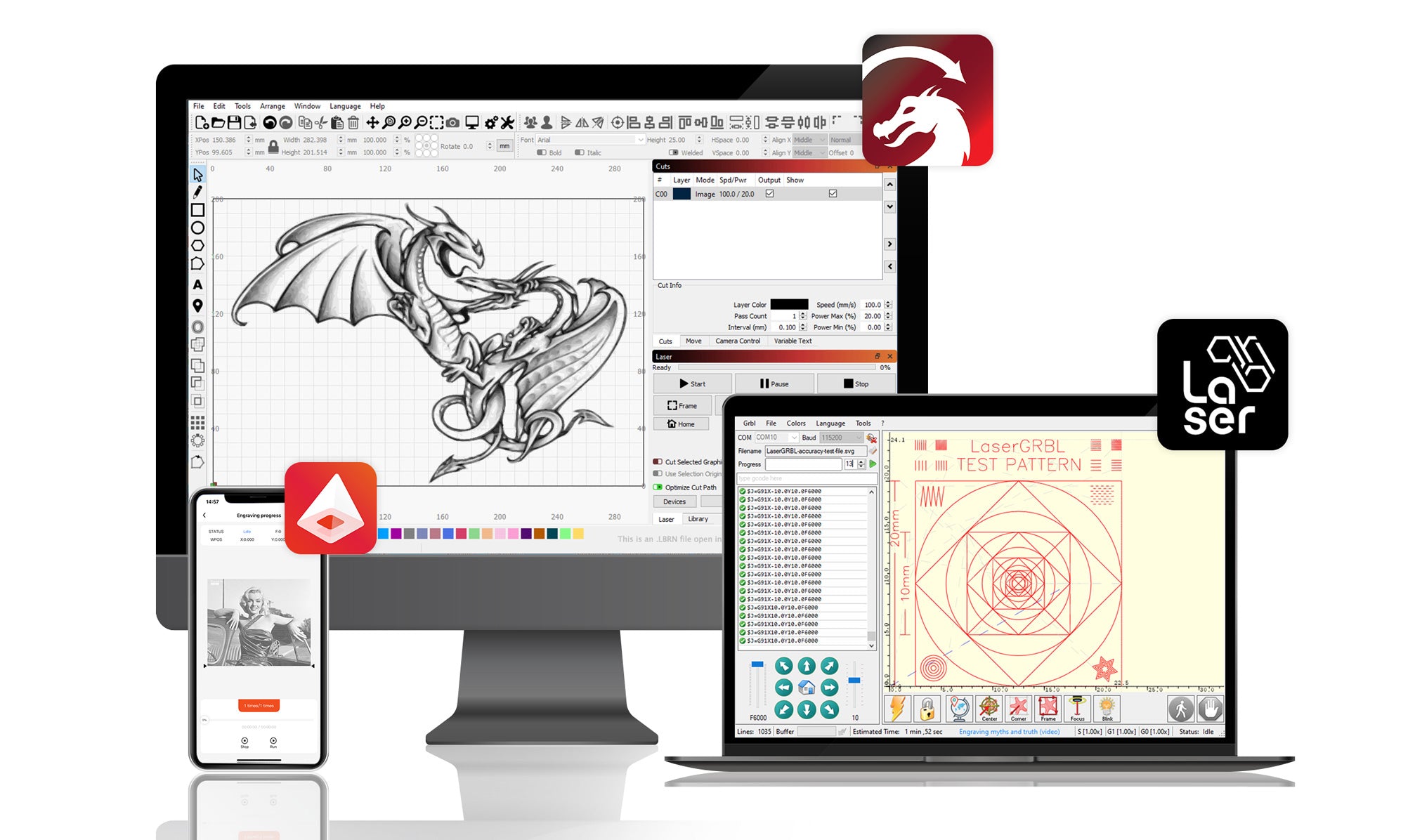

Multiple Software Options To Match Your Needs
Laser Explorer offers a simple or professional mode selection for your every engraving stage.

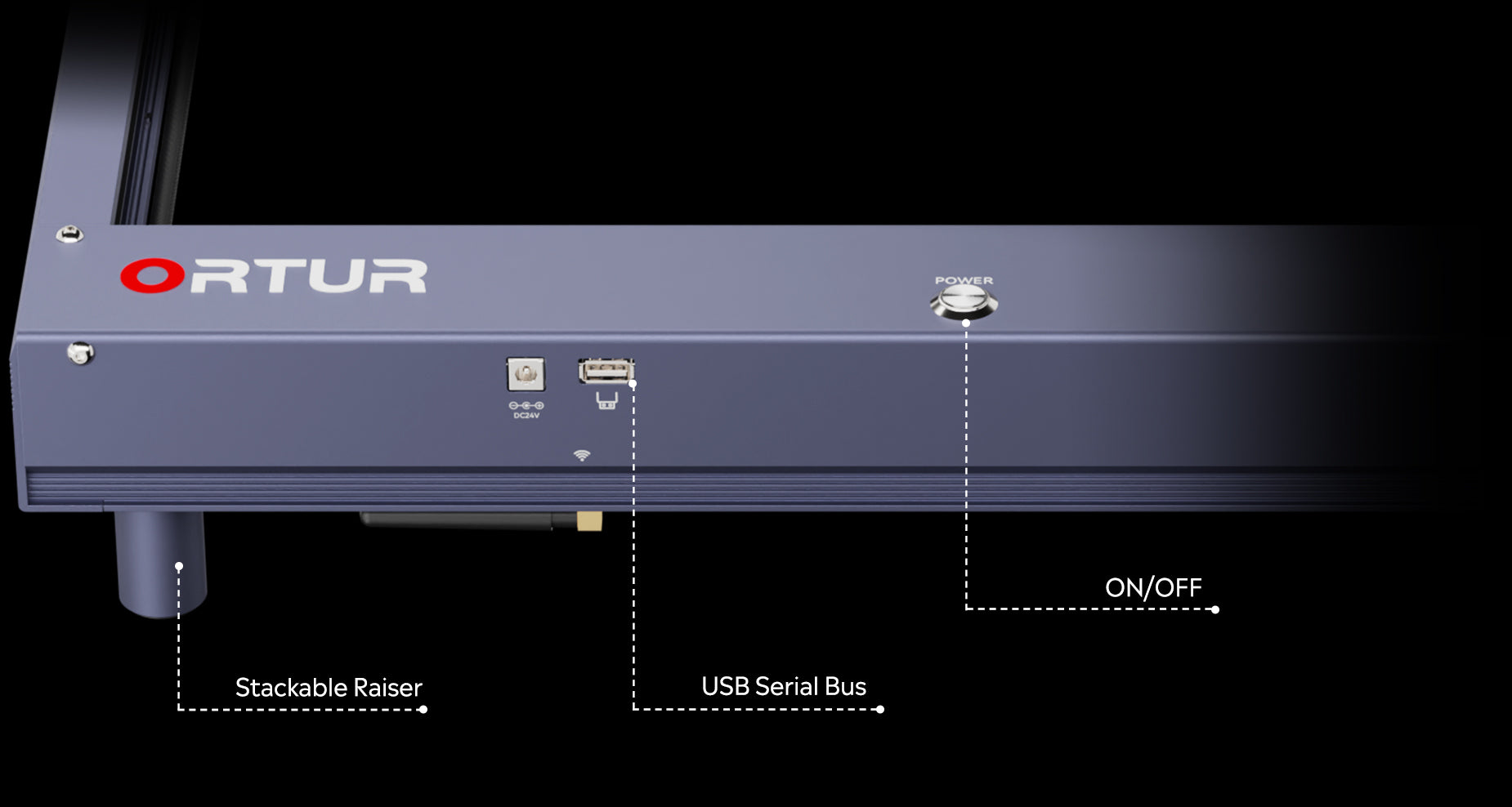

6 Reliable Monitoring Systems

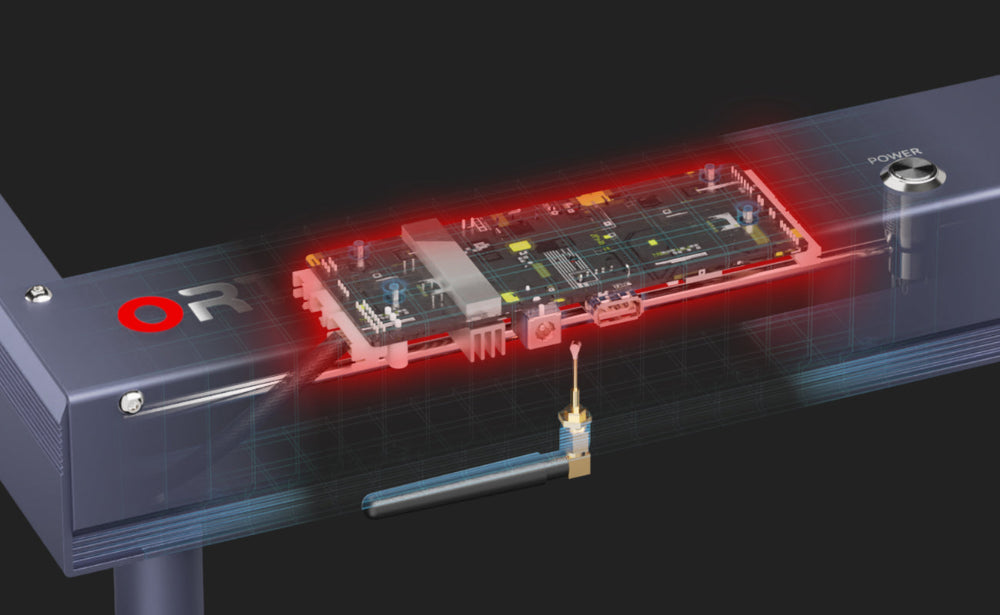

Motherboard Program Monitoring
USB Connection Monitoring

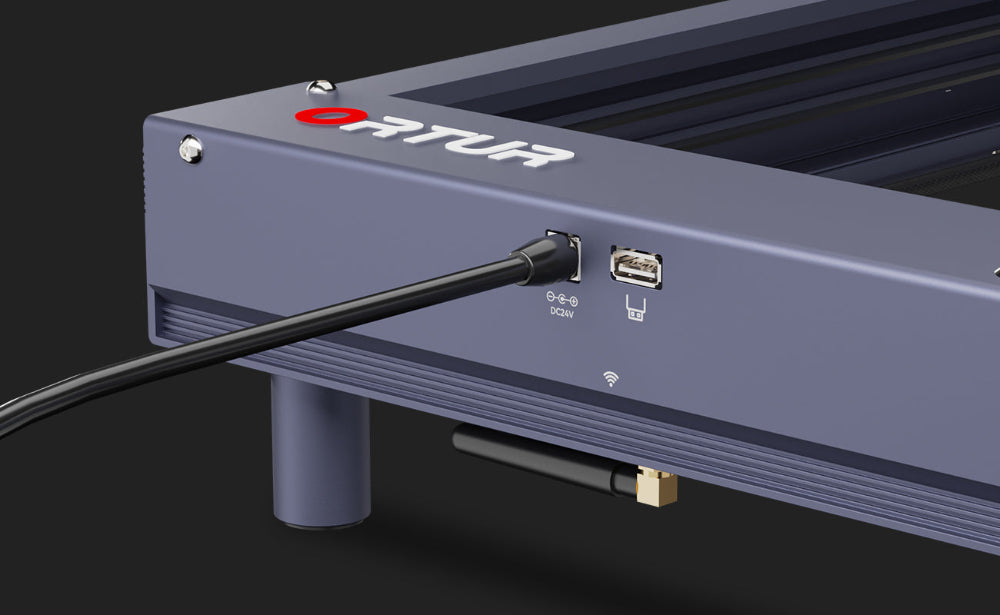

Current and Voltage Monitoring

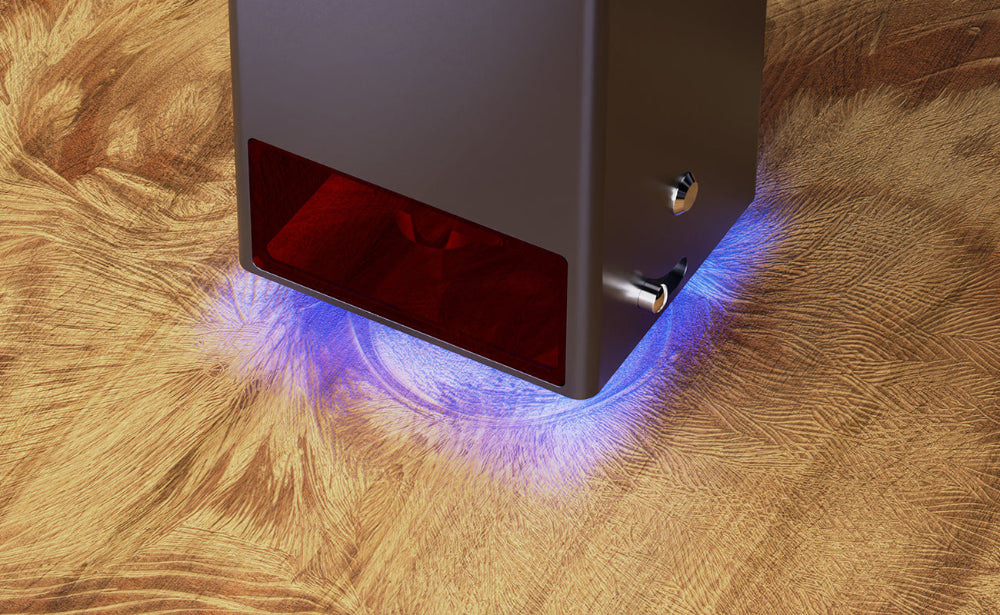

Laser Exposure Monitoring

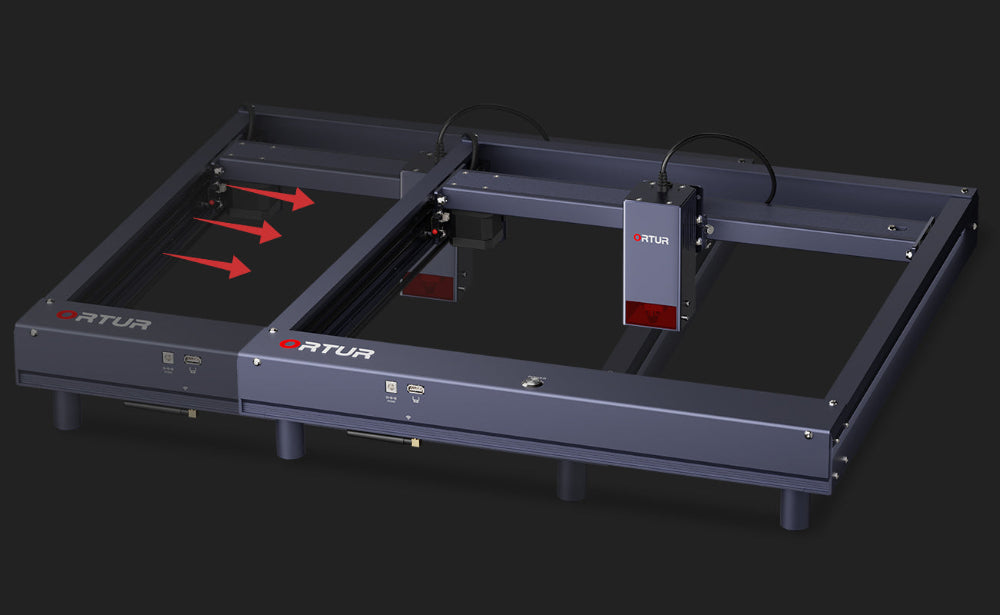

Active Position Protection

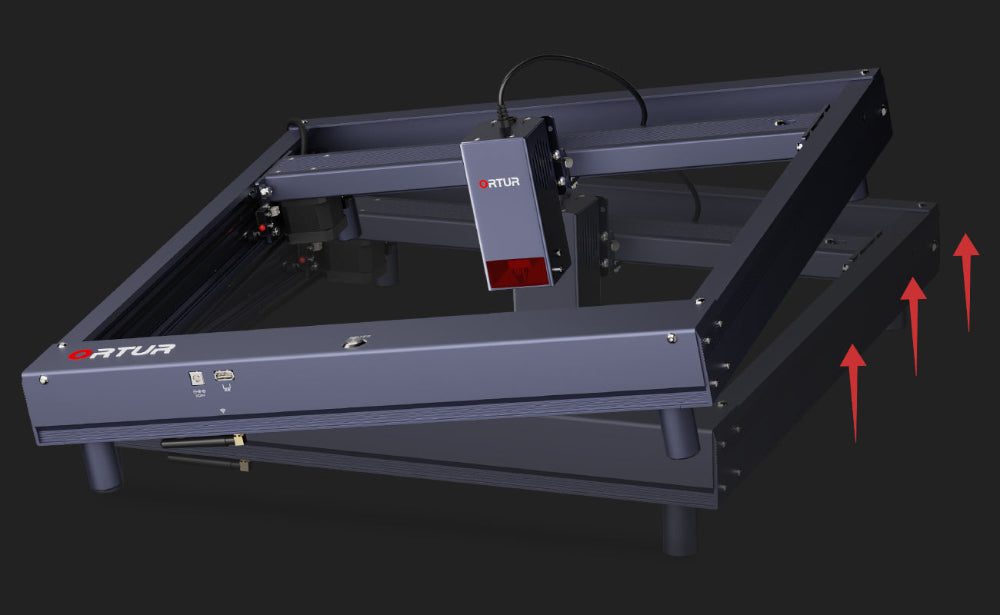

Sloping Position Protection
Compare
Product Specification
Ortur Laser Master 3
Ortur Laser Master H10
LU3-20A
LU3-20B
0.08*0.08mm
0.1x0.12mm
20,000mm/min
20,000mm/min
400mm*400mm
300mm*300mm
400mm*850mm
300mm*300mm
20~24W
20W
24V/6A
24V/6A
450±5nm
450±5nm
0.01mm
0.01mm
Manual
Manual
56.5mm
46mm
Spatial Compression
Optical Compression
500g
555g
>10,000H
>10,000H
√
√

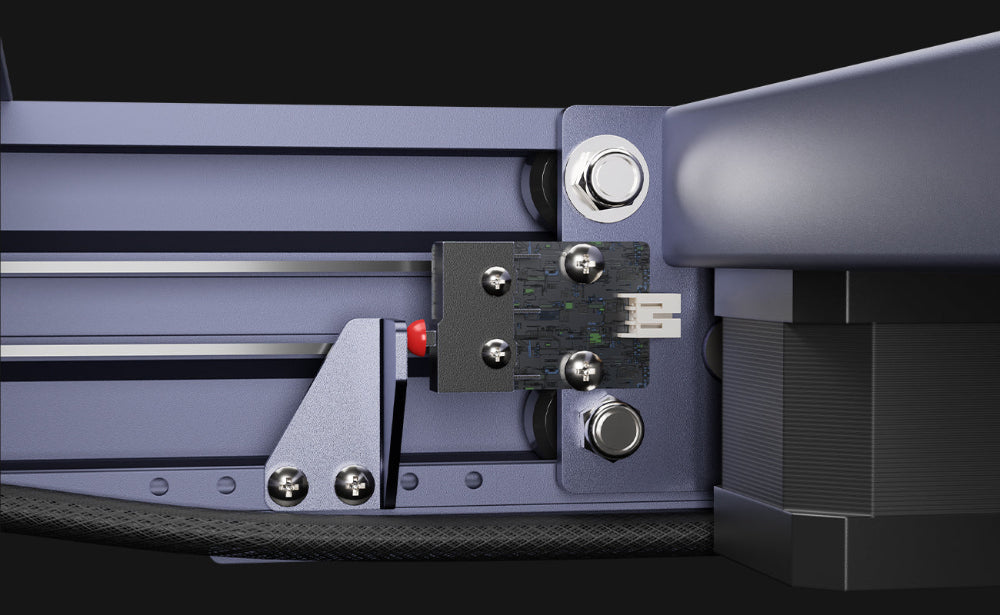

Require extra limitblock >
√
√
√
Safety Lock
Emergency Stop Button
Laser Exposure Time Limit
Tilt Motion Detection
USB Connection Monitor
Active Position Protection
Anti-crash Watchdog Mechanism
Voltage & Current Safety Control System
Laser Exposure Time Limit
Tilt Motion Detection
USB Connection Monitor
Active Position Protection
Anti-crash Watchdog Mechanism
Voltage & Current Safety Control System

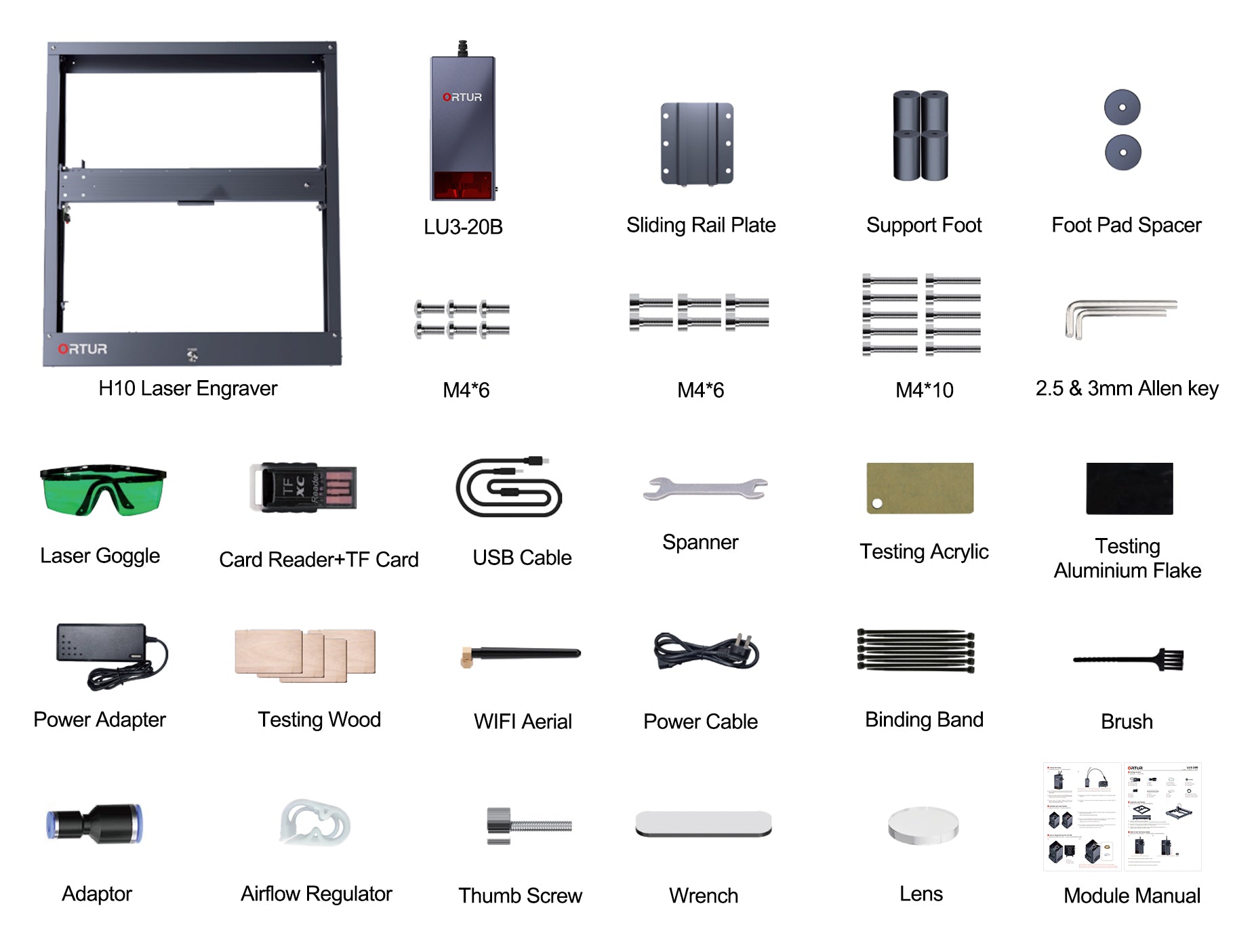

Package Lists
FAQ
Why the H10 20W is suitable for beginners?
✅ H10 20W comes in preassembled package - right outside the box.
✅ Work with Smart APP to make the operation easier.
✅ Free air assist included at no extra cost.
I am a experienced player, should I buy the H10 20W?
Of course.
Besides the convenient design, H10 equipped with 20W professional laser module, meeting most of the engraving & cutting needs.
What are the advantages of the flat structure?
With the innovative flat design, module's centre of gravity is lowered for more stability during movement, bringing ultra-high accuracy.
Can I change other modules on the H10?
Yes, H10 can be directly adapted toLU3-20A/B, LU2-10A, LU2-4SF/LF, LU2-2.

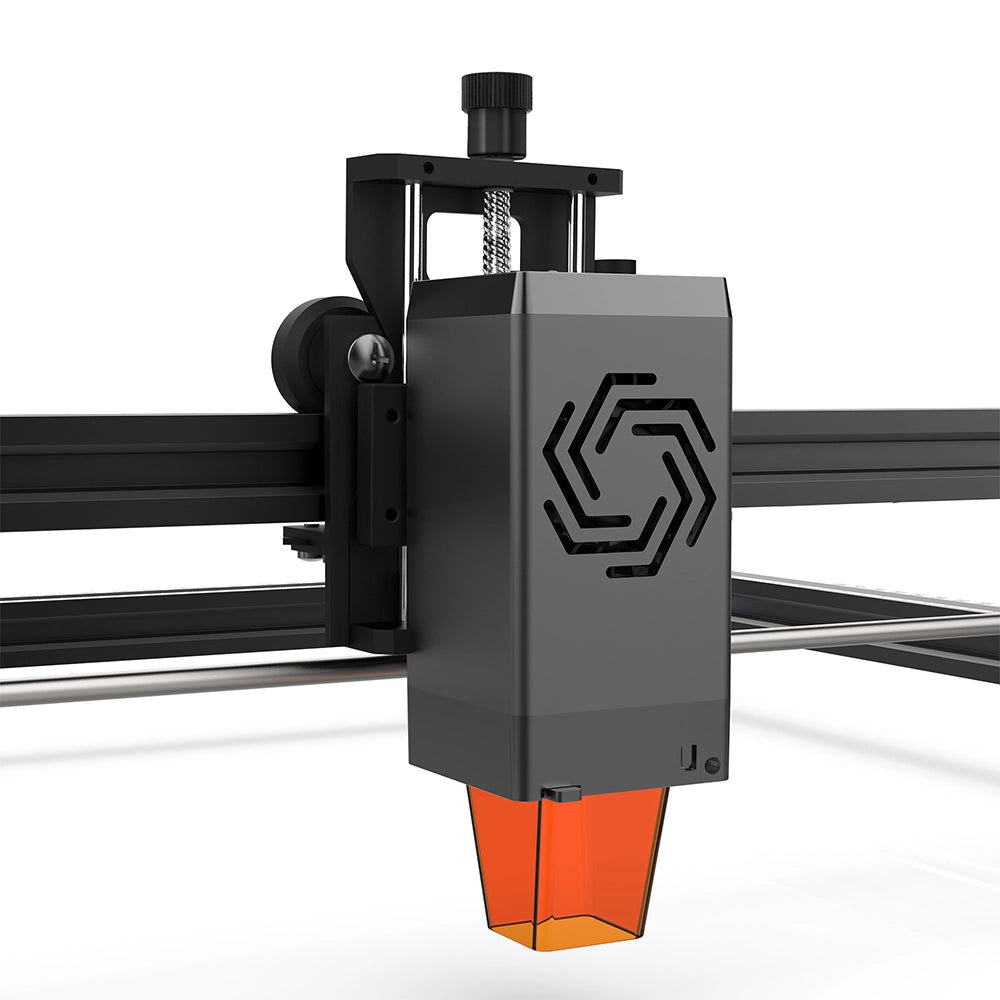

Can the H10 20W be used with the Z-Height Adjuster?
Yes, the Z-axis can be adapted by adjusting the limiting sheet metal parts.
Which accessories are recommended for H10?
✅ The Air Assist Set and Engraving Platform are must-haves. Air Assist Set blows away the dust on the laser head, making your project clean without burn marks and protective lenses.
✅ Processing on honeycomb avoids laser shooting at your desk. 90% of users also order YRC1.0 for cylindrical processing, like tumbler engraving, Christmas ball crafting, and ring engraving.
✅ The H10 exclusive raiser (ORP1.0) is an essential assistant to the Y-Series rollers, and it can also be stacked indefinitely to engrave super-tall objects.

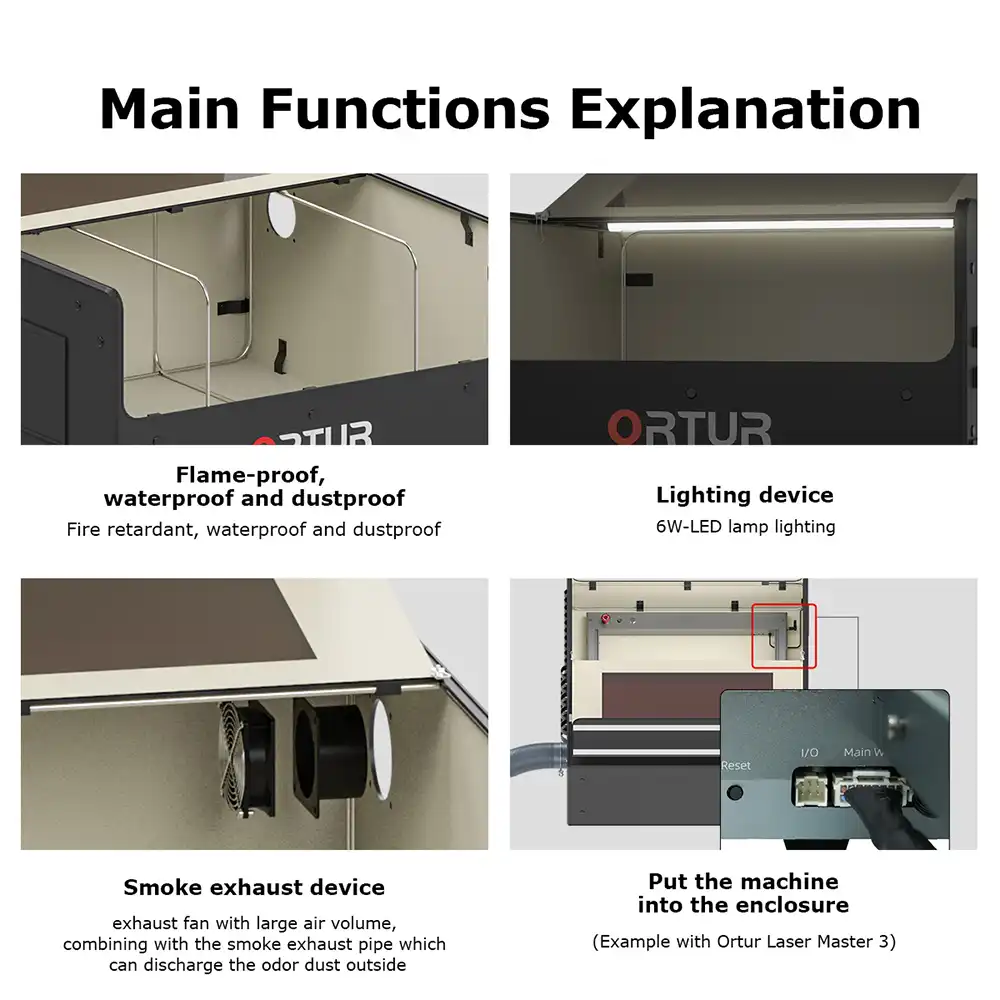

✅ Use indoors with Enclosure 2.0 and a smoke purifier to protect clean indoor air.
What is the difference between the LU3-20A and LU3-20B?
✅ LU3-20A packed with COS technology, which has the best cutting capacity in current Ortur modules.
✅ LU3-20B assembled with optical compression technology, which can handle the majority of thick materials
✅ Learn More
How many sets of H10 raisers should I usually have?
Normally, one set of H10 raiser is sufficient to fit all Y-series rollers of Ortur. However, if you need to engrave larger cylinders and spheres, or thicker, flat objects, you can purchase the raisers separately depending on their size and your needs.
