    Ortur Laser Master 2 Pro S2 Laser Engraving Machine 10,000mm/min 24V/2A

    $449.99 $639.97
    Tax included. Shipping calculated at checkout.
    Description
    • Customers from US, UK, France, Germany and Australia can use PayPal to pay in installments
    • Ship from Oversea warehouse located in Belgium and US
    • Tariff (VAT) is free for all customers.
    • All orders will be shipped within 48 hours. (Except weekends)
    • The Laser Master series laser engraving machine enjoys a 30-day return guarantee and a one-year warranty.

    Related Products

    Laser Master 2 Pro Installation & Use Video

    00:02-04:25
    Section One: Laser Master 2 Pro Installation

    04:26-06:53
    Section Two: Preparation Before Engraving

    06:54-07:52
    Section Three: Start Engraving

    07:53-07:54
    Section Four: Works Exhibition

    Tutorial File For New User

    Download

    Tutorial File For New User

    Download

    "Presently ORTUR is a known reference name in the world"
    The commitment of expanding and improve the technology
    of diode laser engravers is one of ORTUR's top priorities.

    Certificate

    "Presently ORTUR is a known reference name in the world" The commitment of expanding and improve the technology of diode laser engravers is one of ORTUR's top priorities.

    Certificate

    9th Generation 32-Bits Motherboard For Smoother and Faster Engraving

    Ortur Laser 1.8
    Series Firmware

    [Product advantage] Ortur Laser 1.8 firmware,qualified for ESP32 MCUs, optimizes the motion algorithm,and increases the maximum stepper motors speed from 4000mm/min to 10000mm/mm.

    Emergency Stop Button +
    Flame Detector And Buzzer Alarm

    Stop the operation of the machine at any time, flame detection and warning.

    Safety Protection System
    For Worry-free Use

    Fast Engraving Speed
    Comparison with other machine

    OLM-2 Pro S2

    Size: 380 × 322mm
    The fastest engraving speed
    Time: 2hours 56minutes

    Fast Engraving Speed
    Comparison with other machine

    Other Machine

    Size: 380 × 322mm
    The fastest engraving speed
    Time: 5hours 5minutes

    Enhanced Gray scale
    The effect like a real photo

    Original Photo

    Engraving Effect

    Option 1
    LU2-2 Fixed Focus Laser Module

    Optical Power: 1,000 - 1,600mW
    Focal Spot: 0.07 × 0.06mm

    It has a smaller Luminous Cavity, so it has asmaller Focal Spot and good at engraving high-precision pattern.

    Option 2
    LU2-4-SF Optically Compressed Laser Module

    Optical Power: 4,500 - 5,500mW
    Focal Spot: 0.12 × 0.15mm

    It's high power and has a Compressed Laser Spot, so it's good at cutting and better at engraving harder materials.

    Option 3
    LU2-4-LF Optically Compressed Laser Module

    Optical Power: 4,500 - 5,500mW
    Focal Spot: 0.17 × 0.25mm

    It's high power and has a longer Depth of Field, so it's good at engraving and better at cutting.

    Air Source (compressor) not included in the package Ortur recom

    24V
    Electric System

    More power, lower current,
    safer, support to expand more add-ons.

    Cable Chain
    Flexible Cable

    Cable chain accommodating wires,
    beautiful and clean.

    Scale Mark
    Auxiliary Use

    A scale is printed on the aluminum
    profile for easy position adjustment.

    Full Metal Body
    Structure

    Full sheet metal + aluminum profile body,
    when fast engraving machine, the body does
    not shake, and the machine runs more stably.

    Modular Construction
    Assemble the machine in about 15 minutes

    Add - Ons
    Portable Control Box
    Use Arbitrary, Unfettered

    Z-axis Lifting Device

    Standard

     Tighten the screw to adjust the tightness to adjust
    the focus. The focus accuracy control is not precise enough,but the laser module is lighter in weight,
    and faster engraving speed can be used.

    Optional Parts

    Turn the knob by hand to get a precise focal length, with delicate engraving and cutting effects. However, the overall laser module is heavier and cannot use higher engraving speeds.

    Optional Ortur YRR2.0
    Y-axis Rotary Roller

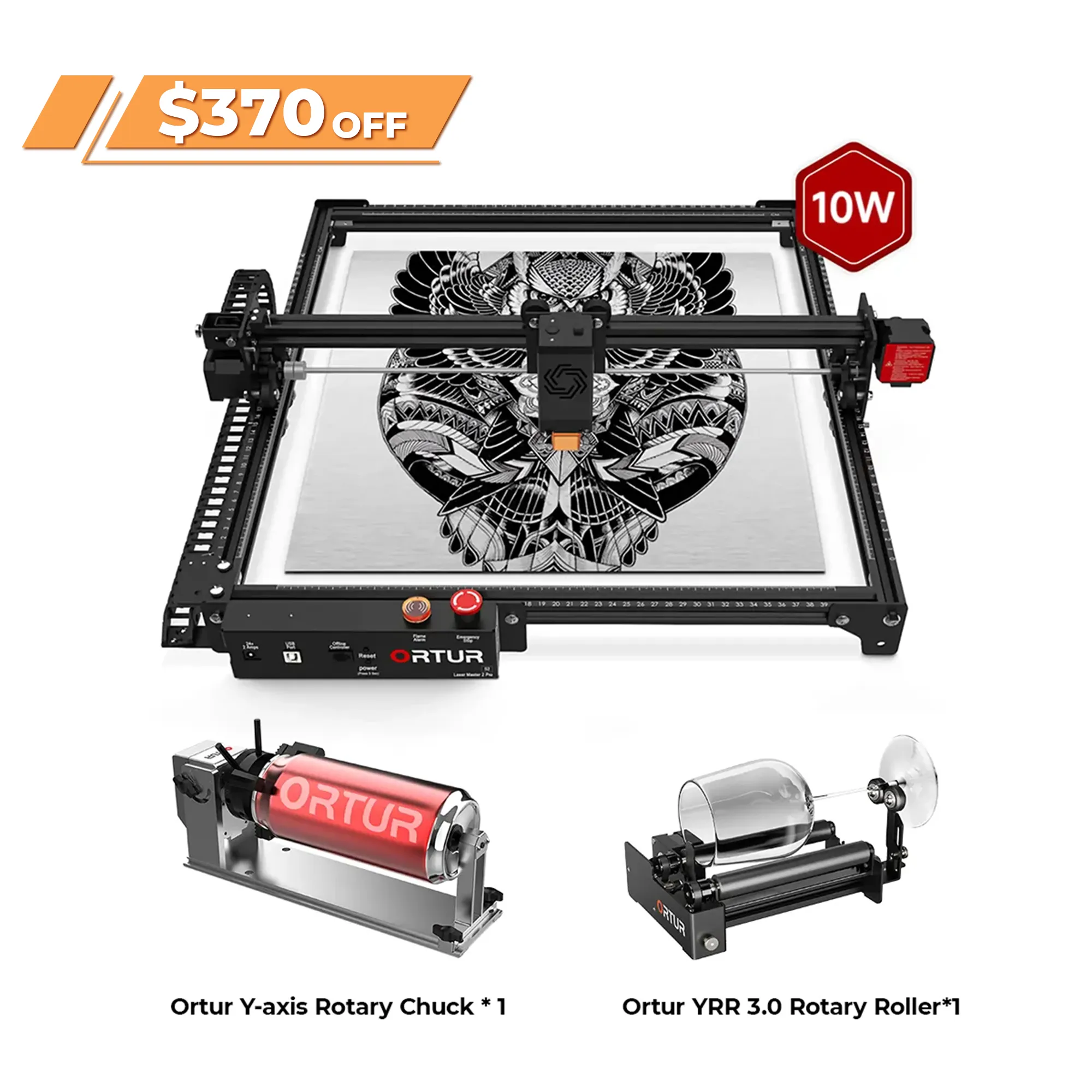

    It's optional, you could buy it separately, and use this auxiliary device to work with Laser Master 2 Pro for engraving cylindrical objects.

    Optional Enclosure Casing +
    Exhaust System for Fumes

    It's optional, you could buy it separately, to build
    Laser Master 2 Pro to be a enclosed laser engraver
    with an exhaust system for fumes that would make
    the users safer to use on more materials and limit
    eye exposure to the laser.

    Big Engraving Area

    Large Engraving Area to Achieve More Creativity

    9th Generation 32-Bits Motherboard
    For Smoother and Faster Engraving

    Ortur Laser 1.8
    Series Firmware

    [Product advantage] Ortur Laser 1.8 firmware,qualified for ESP32 MCUs, optimizes the motion algorithm,and increases the maximum stepper motors speed from 4000mm/min to 10000mm/mm.

    Emergency Stop Button
     + Flame Detector And Buzzer Alarm

    Stop the operation of the machine at any time, flame detection and warning.

    Safety Protection System
    For Worry-free Use

    Fast Engraving Speed
    Comparison with other machine

    OLM-2 Pro S2

    Size: 380 × 322mm
    The fastest engraving
    speed Time: 2hours 56minutes

    Other Machine

    Size: 380 × 322mm
    The fastest engraving
    speed Time: 5hours 5minutes

    Original Photo

    Engraving Effect

    Option 1
    LU2-2 Fixed Focus Laser Module

    Optical Power: 1,000 - 1,600mW
    Focal Spot: 0.07 × 0.06mm

    It has a smaller Luminous Cavity,
    so it has asmaller Focal Spot and good at
    engraving high-precision pattern.

    Option 2
    LU2-4-SF Optically Compressed Laser Module

    Optical Power: 4,500 - 5,500mW
    Focal Spot: 0.12 × 0.15mm

    It's high power and has a Compressed Laser Spot,so it's good at cutting and better at engraving harder materials.

    Option 3
    LU2-4-LF Optically Compressed Laser Module

    Optical Power: 4,500 - 5,500mW
    Focal Spot: 0.17 × 0.25mm

    It's high power and has a longer Depth of Field,
    so it's good at engraving and better at cutting.

    Air Source (compressor) not included in the package Ortur recom

    24V
    Electric System

    More power, lower current,safer,
     support to expand more add-ons.

    Cable Chain
    Flexible Cable

    Cable chain accommodating wires,
    beautiful and clean.

    Scale Mark
    Auxiliary Use

    A scale is printed on the aluminumprofile
    for easy position adjustment.

    Full Metal Body
    Structure

    Full sheet metal + aluminum profile body,when fast engraving machine, the body does not shake,and the machine runs more stably.

    Modular Construction

    Assemble the machine in about 15 minutes

    Add - Ons
    Portable Control Box

    Use Arbitrary, Unfettered

    Z-axis Lifting Device

    Standard

     Tighten the screw to adjust the tightness to adjust the focus.The focus accuracy control is not precise enough,but the laser module is lighter in weight,and faster engraving speed can be used.

    Optional Parts

    Turn the knob by hand to get a precise focal length, with delicate engraving and cutting effects. However, the overall laser module is heavier and cannot use higher engraving speeds.

    Optional Ortur YRR2.0
    Y-axis Rotary Roller

    Optional Enclosure Casing +
     Exhaust System for Fumes

    It's optional, you could buy it separately, and use this auxiliary device to work with Laser Master 2 Pro for engraving cylindrical objects.

    It's optional, you could buy it separately, to build Laser Master 2 Pro to be a enclosed lase engraver with an exhaust system for fumes that would make the users safer to use on more materials and limit eye exposure to the laser.

    Big
    Engraving Area

    Large Engraving Area to Achieve More Creativity

    Product Name

    Diode Laser Engraver

    Product Model

    Laser Master 2 Pro S2

    Engraving Area

    X400*Y400MM

    Net Weight

    3.5KGS

    Gross Weight

    4.6KGS

    Product Size

    600*570*189MM

    Product Material

    Aluminum Profile + Sheet Metal

    File Format

    Jpg / Jpeg / Png /
     Bmp / Svg / Etc

    Box Size

    660*250*110MM

    Control Software

    LaserGRBL ( Free ), it could only support Windows OS.LightBurn ( Not free), it could support Windows,MAC and Linux.

    Rated Power

    24V 2A 48W

    Multiple Uses

    Artistic Creation

    Soft Outfit Design

    Toy Puzzle

    Manufacturing

    Logo & VI Design

    Life Record

    Multiple Uses
    Enjoy The Fun Of DIY

    Wood

    Glass

    Food

    Stone

    Oxidized Metal

    Stainless Steel

    Ceramic Tile

    Phone Case

    Acrylic

    Paper

    Plywood

    Thin Leather

    Note: The above work is done by LU2-2 or LU2-4-LF or LU2-4-SF laser module,
    but each model of laser module has a different focus. LU2-2 is suitable for fine carving;
    LU2-4-LF is more suitable for cutting; LU2-4-SF can achieve a certain effect in both carving and cutting.
