Graveur et découpeur laser à convoyeur Ortur F10 10 W/20 W/40 W
- Les 3 premières commandes donnent droit à un Z-Height Adjuster gratuit
- Compatibilité du module laser polyvalent, compatible avec les modules laser 10 W, 20 W, 40 W et autres modules laser Ortur

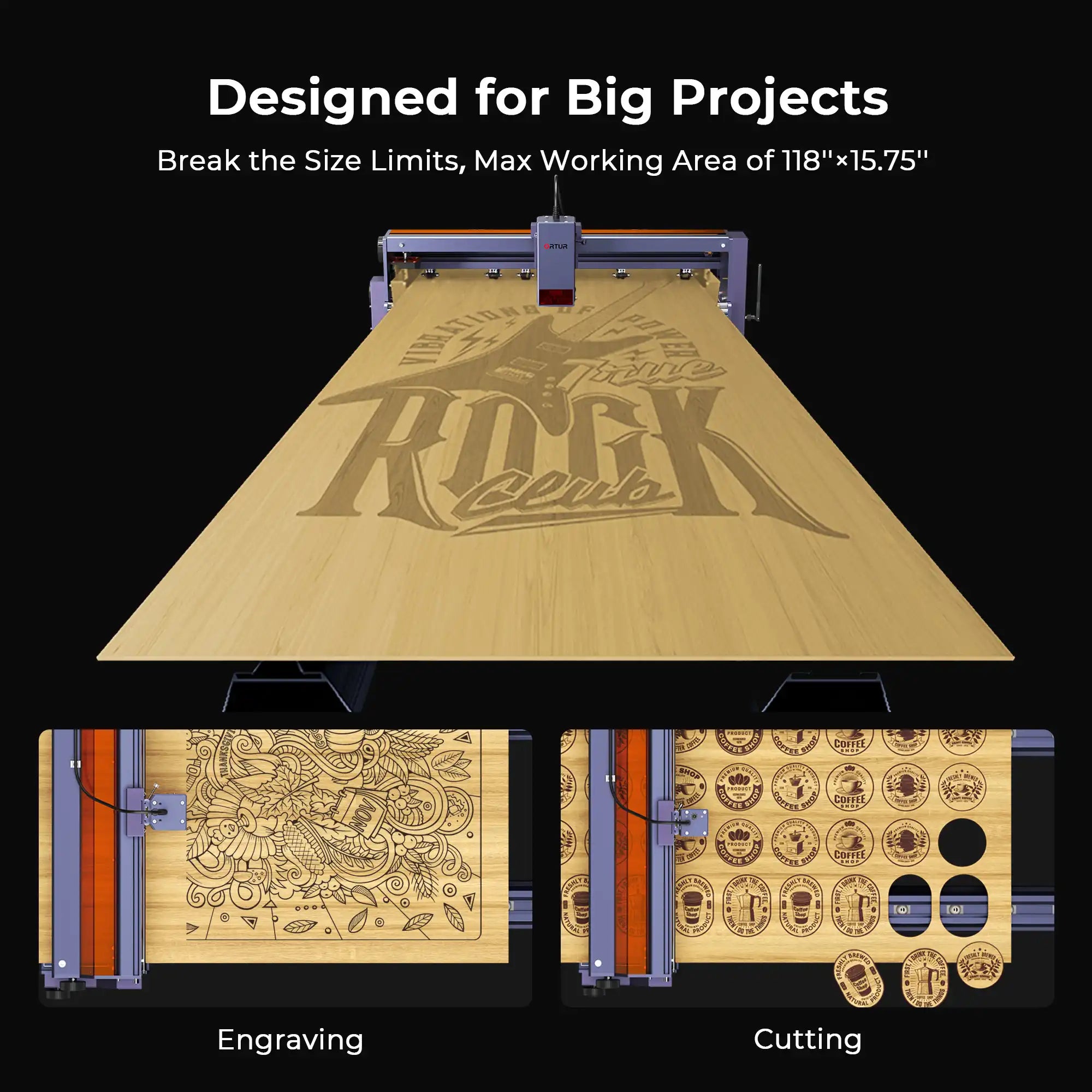

- Grande zone de travail de 118''×15, 75'', limite de taille de rupture
- Les rouleaux à double pression empêchent le déplacement du matériau et garantissent un effet de gravure précis
- Indispensable pour les bricoleurs et les petites entreprises, parfait pour créer de grands projets
- ‼️ Délai de livraison estimé : début décembre

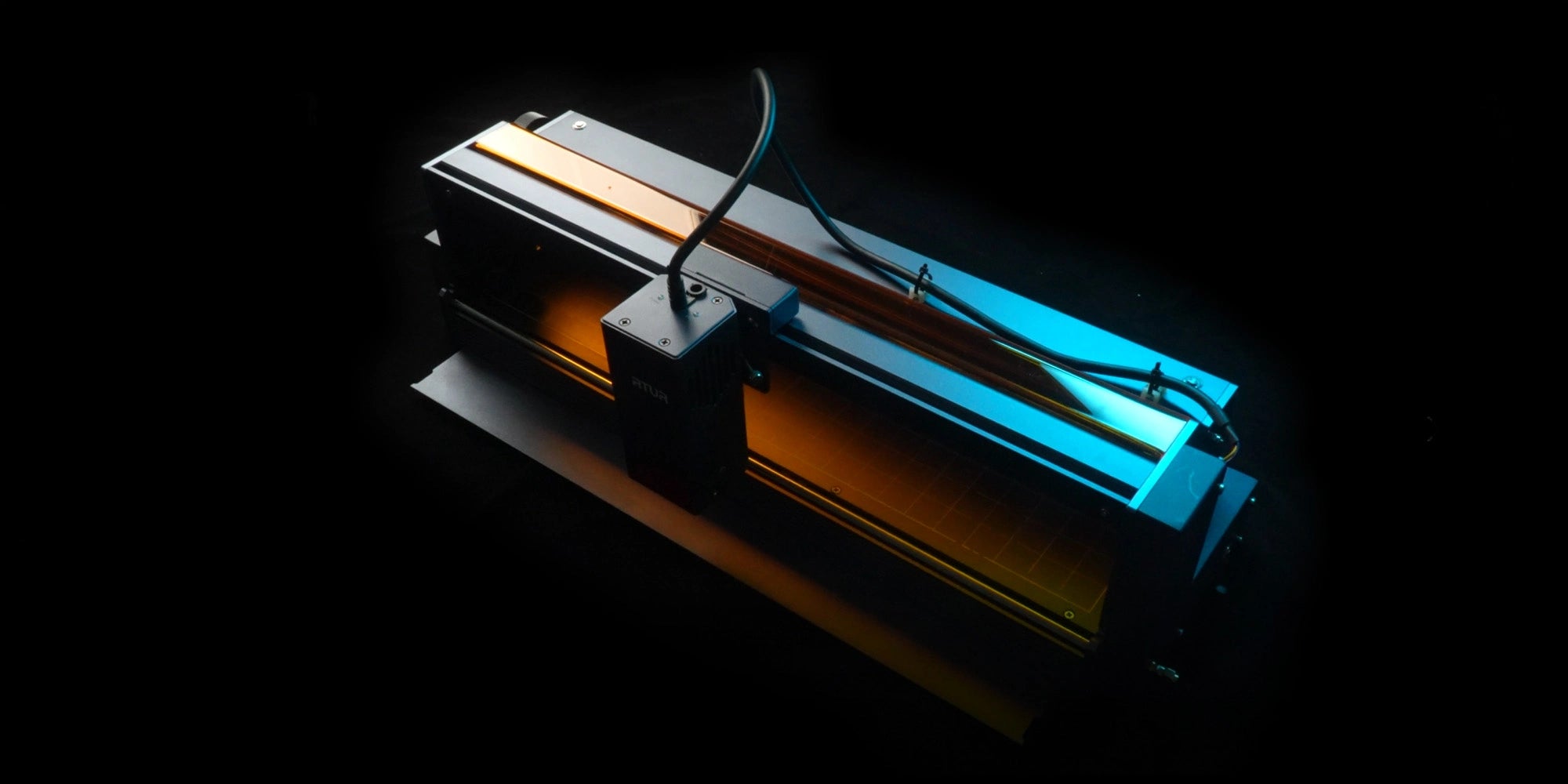

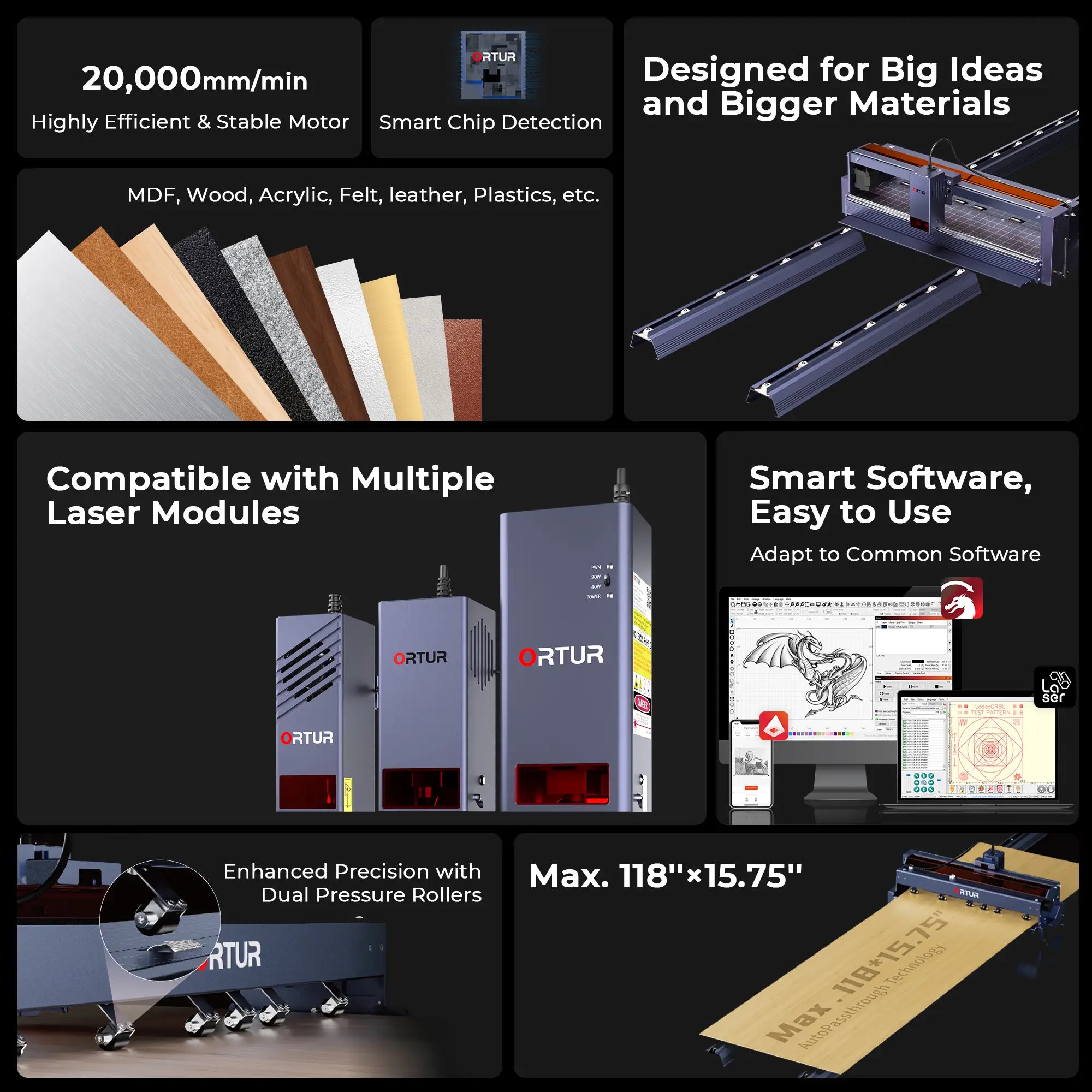

Ortur F10 Conveyor Laser Engraver

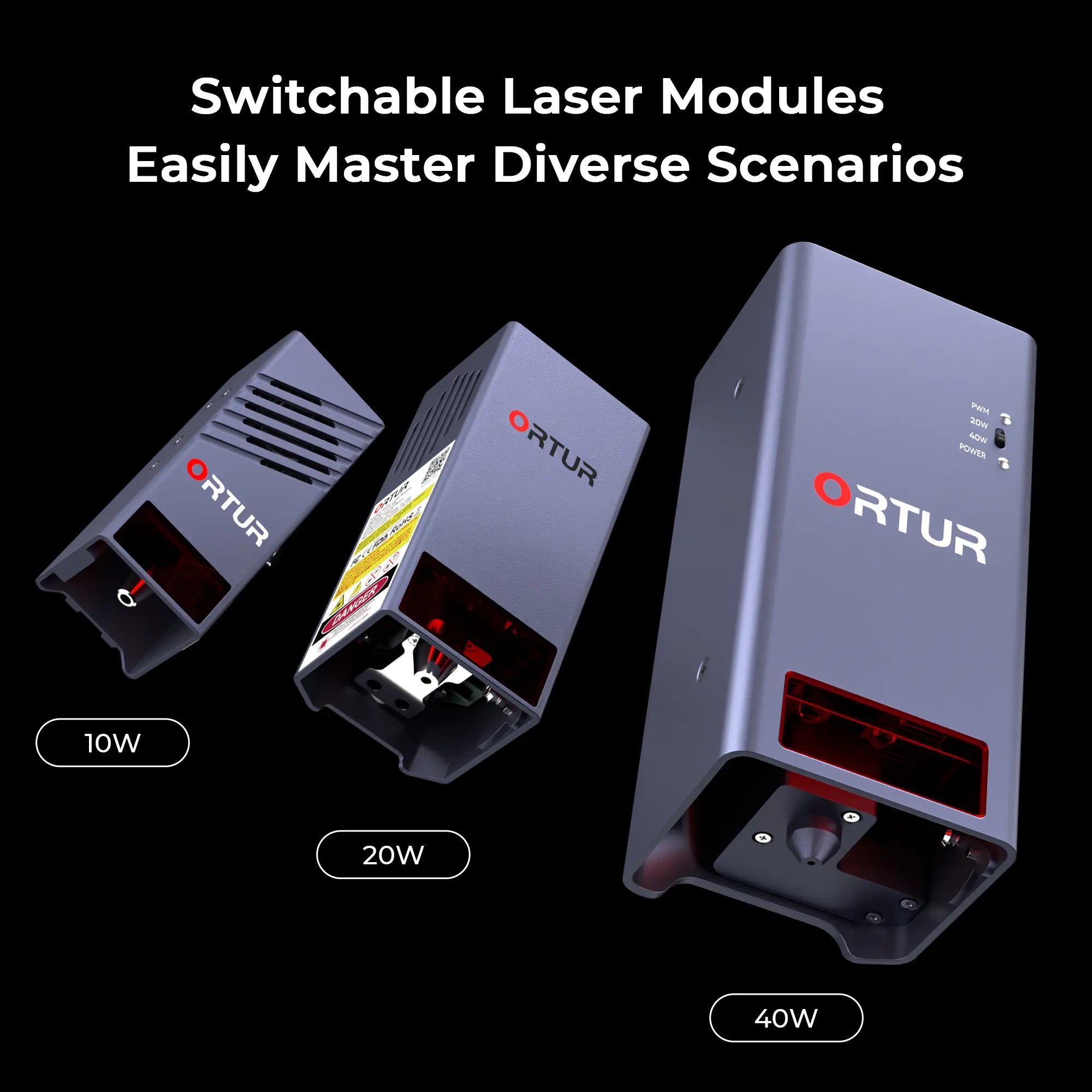

Feed Large Materials, Engrave with Precision, Switchable Laser Modules to Easily Master Diverse Scenario.

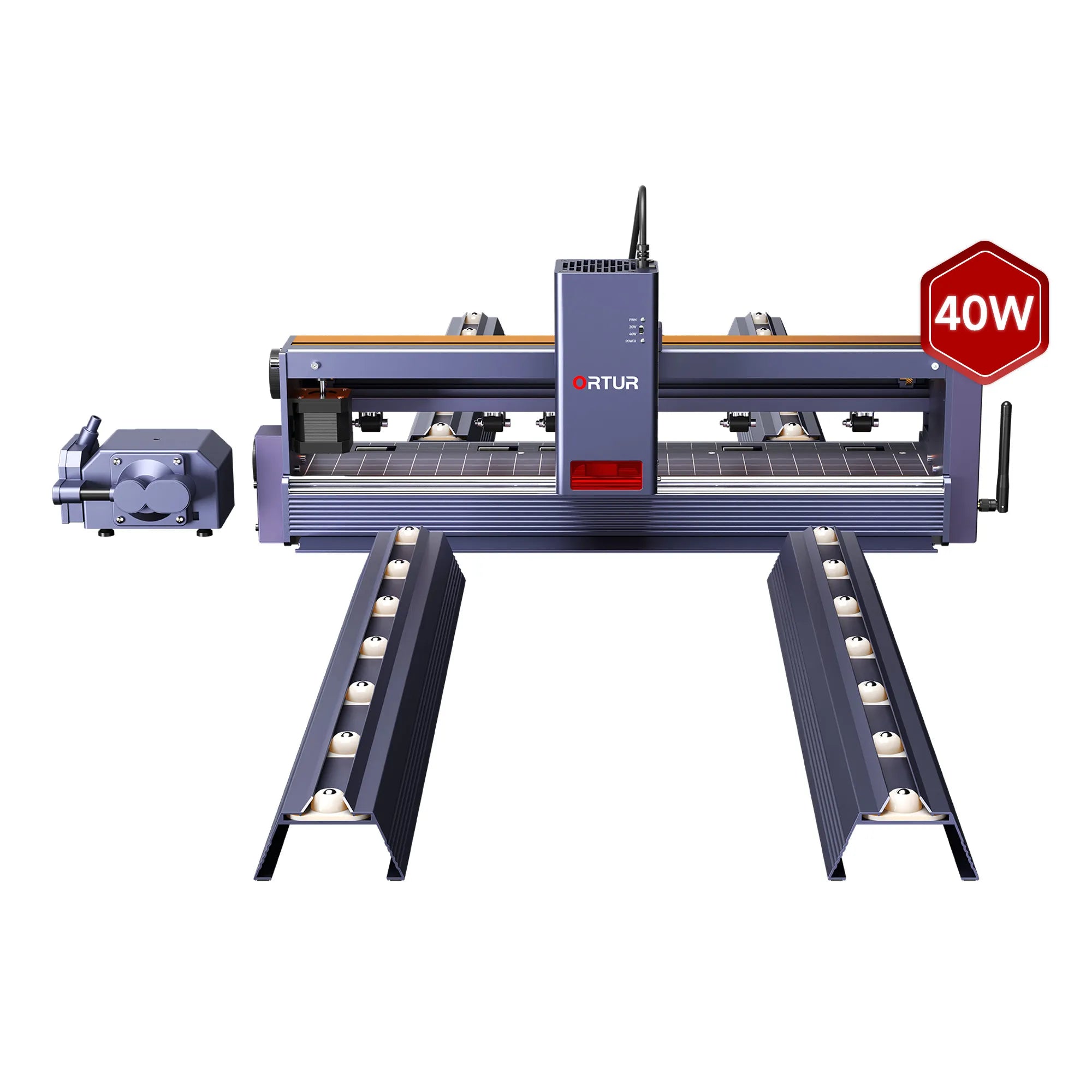

40W Laser Module
ldeal for Thick Cutting Projects and Increase Working Efficiency

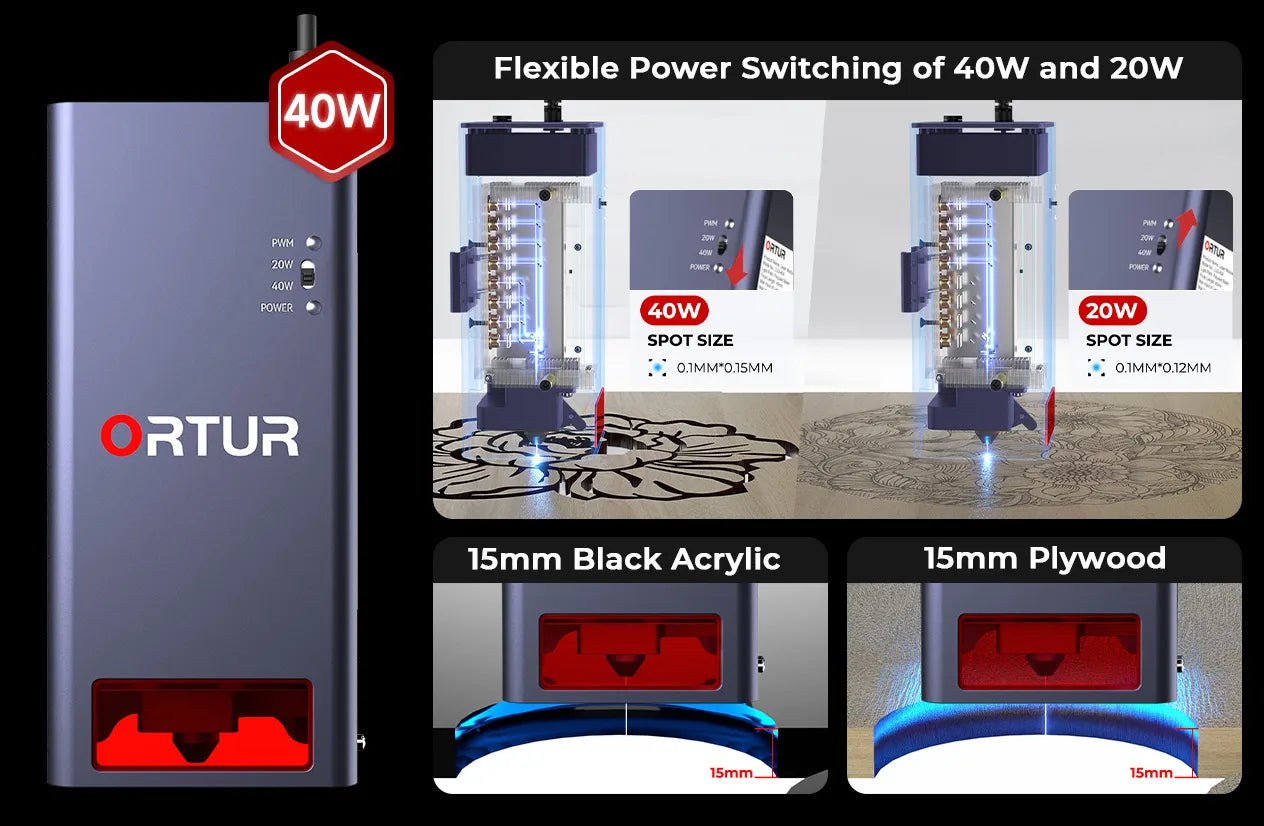

Flexible Power Switching of 40W and 20W
One-pass Cutting for 15mm Black Acrylic
One-pass Cutting for 15mm Plywood

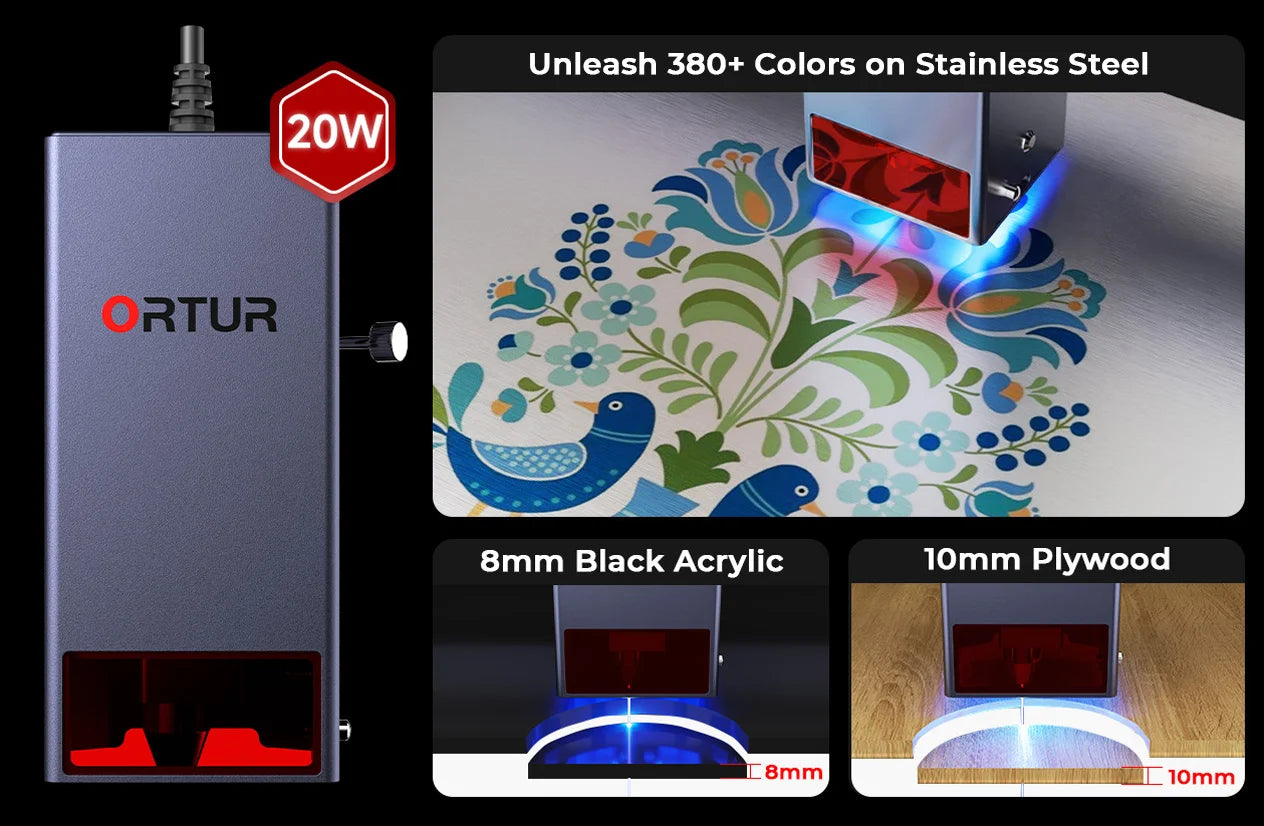

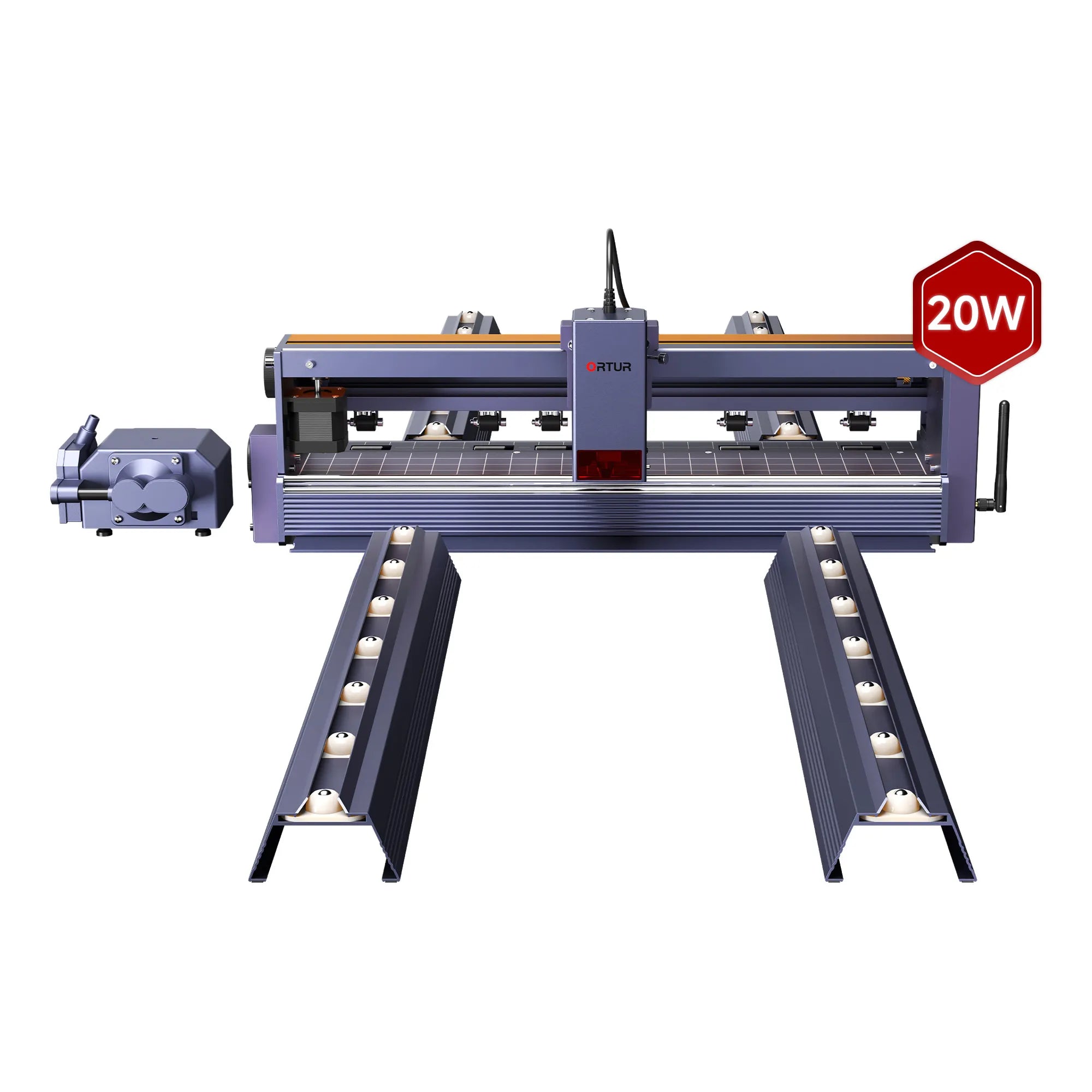

20W Laser Module
Suitable for Both Engraving and Cutting Projects
Unleash 380+ Colors on Stainless Steel
One-pass Cutting for 8mm Black Acrylic
One-pass Cutting for 10mm Plywood

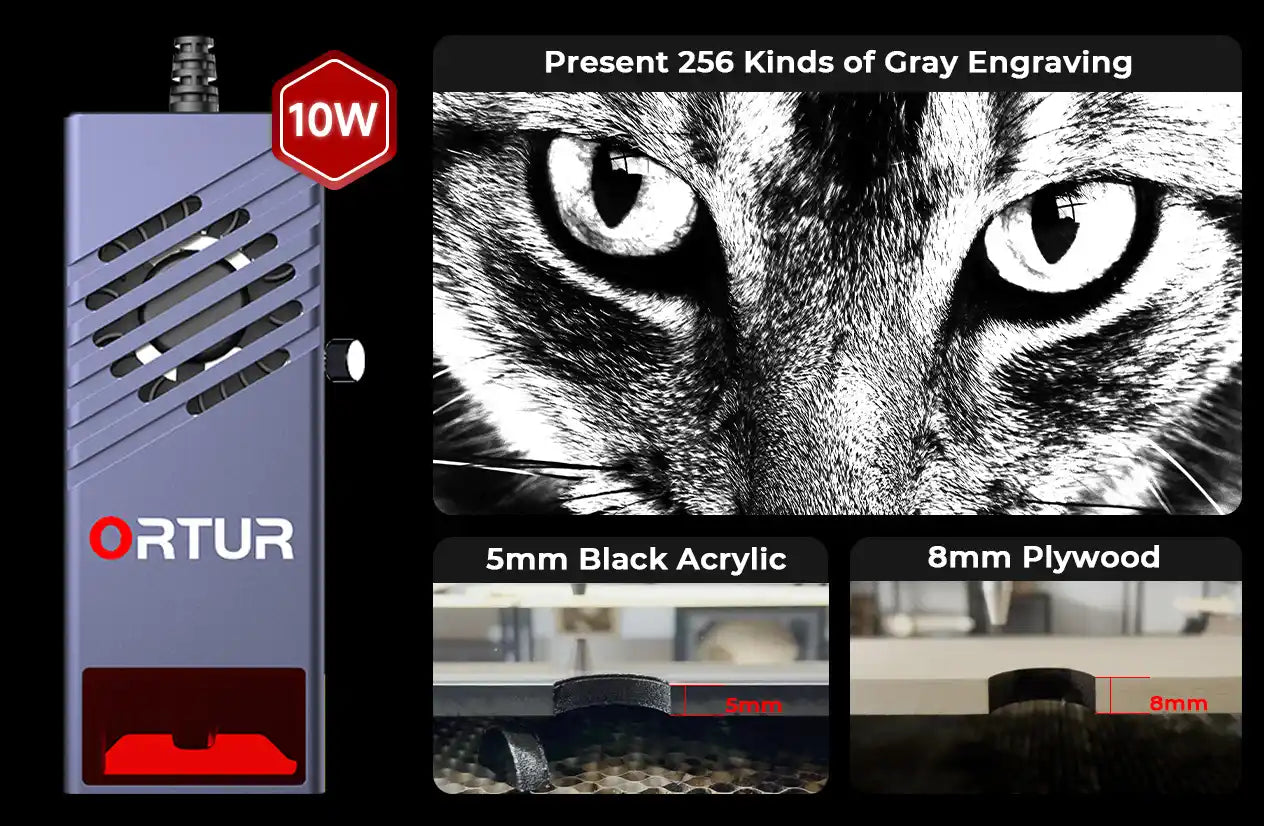

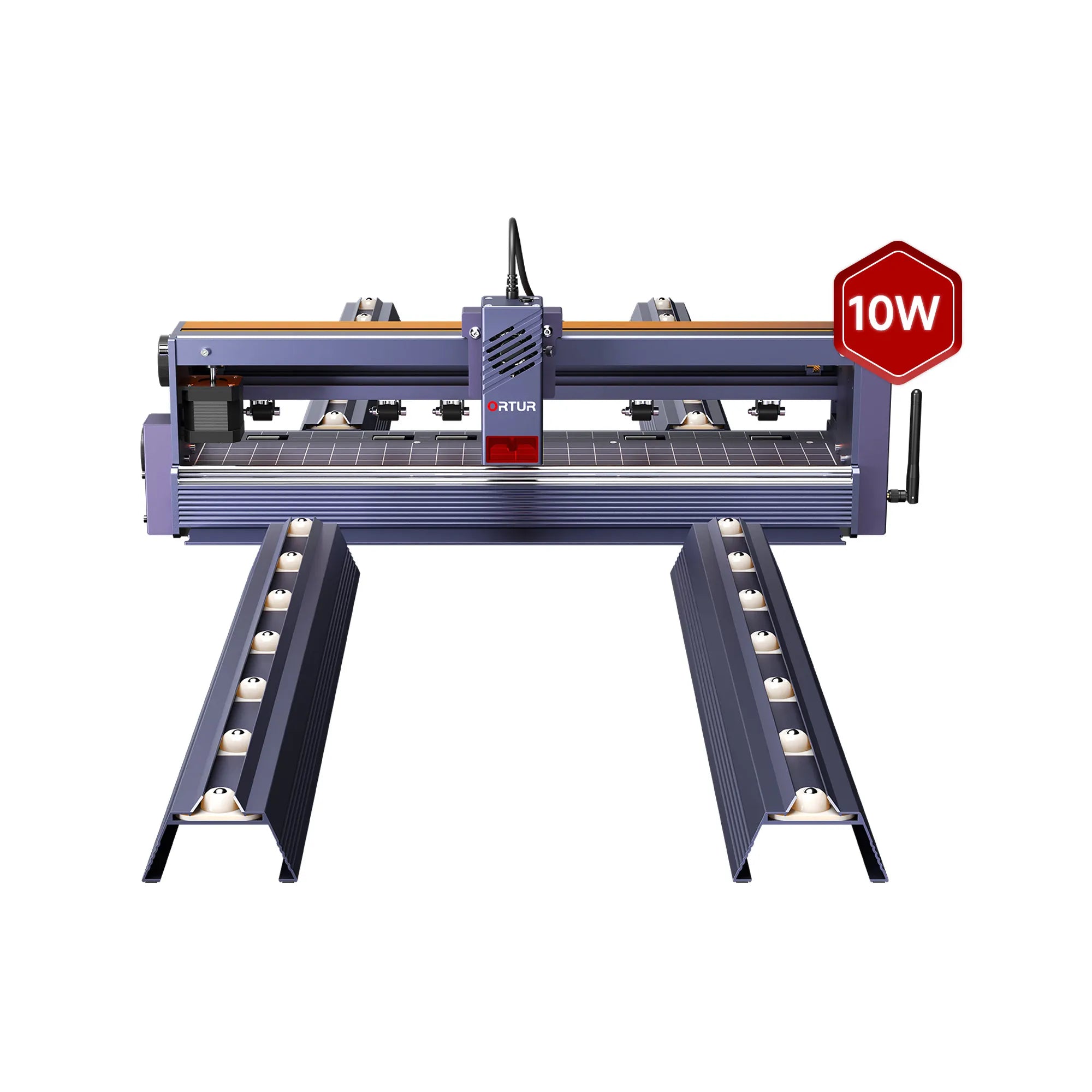

10W Laser Module
Best choice for Engraving, Versatile for Light Cutting
Present 256 Kinds of Gray Engraving
One-pass Cutting for 5mm Black Acrylic
One-pass Cutting for 8mm Plywood

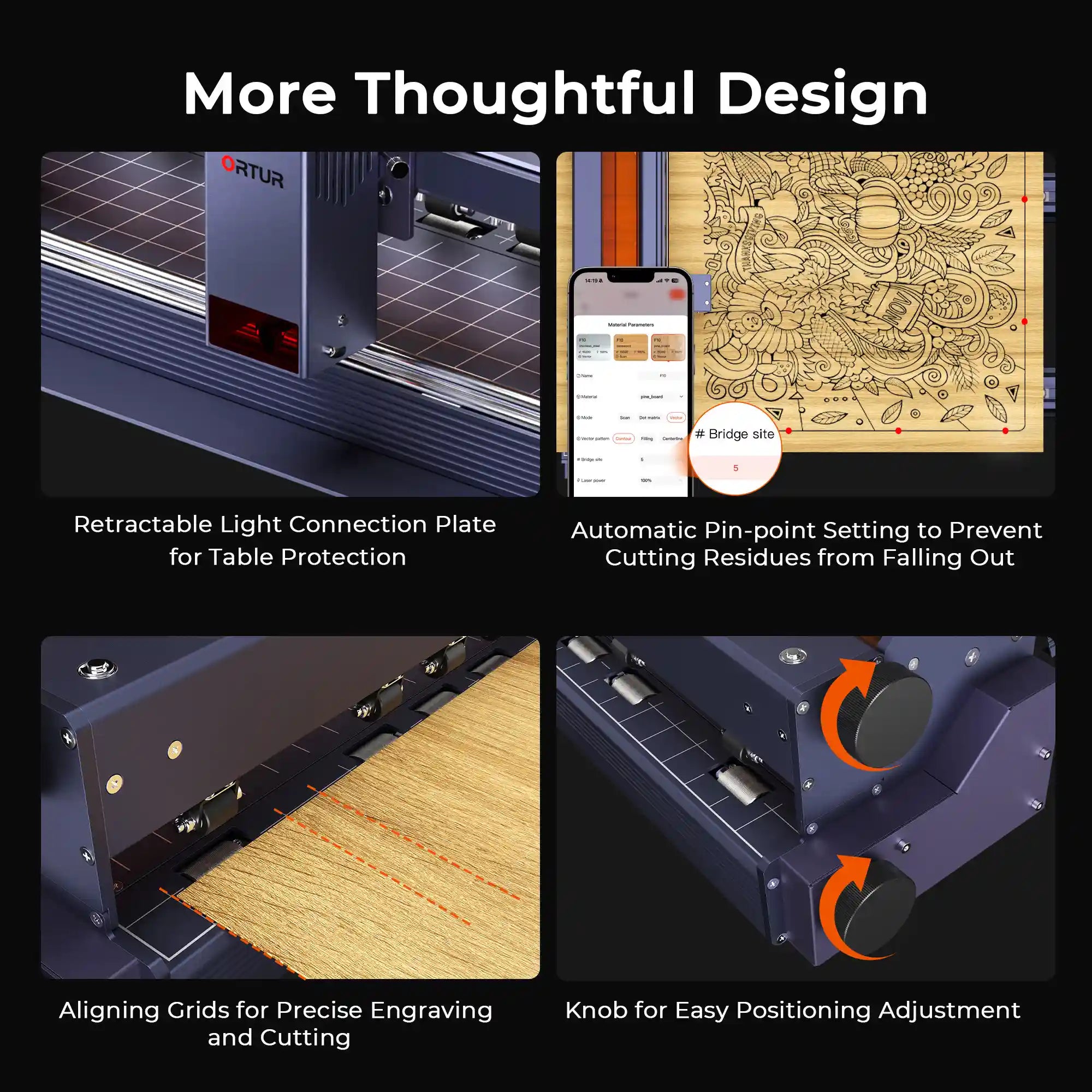

More Thoughtful Design

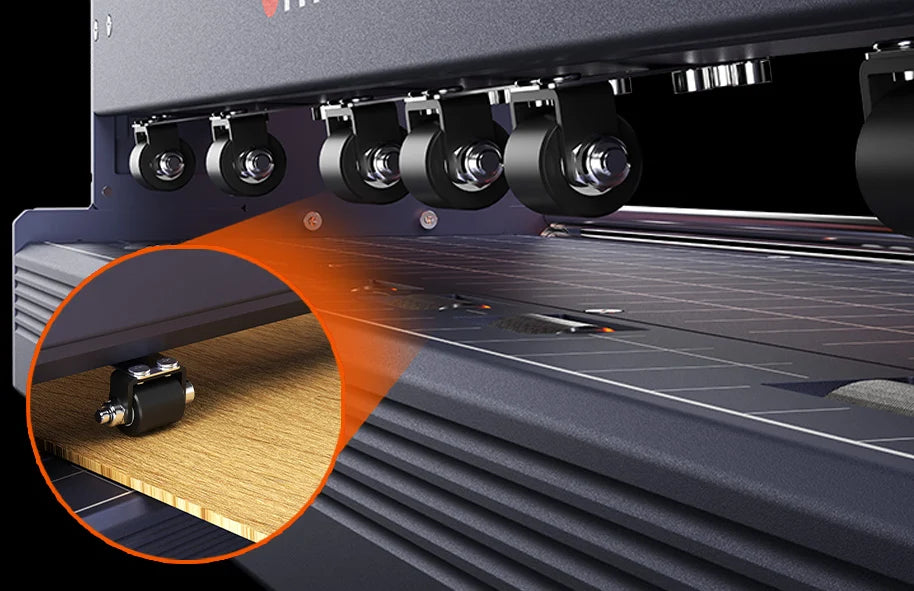

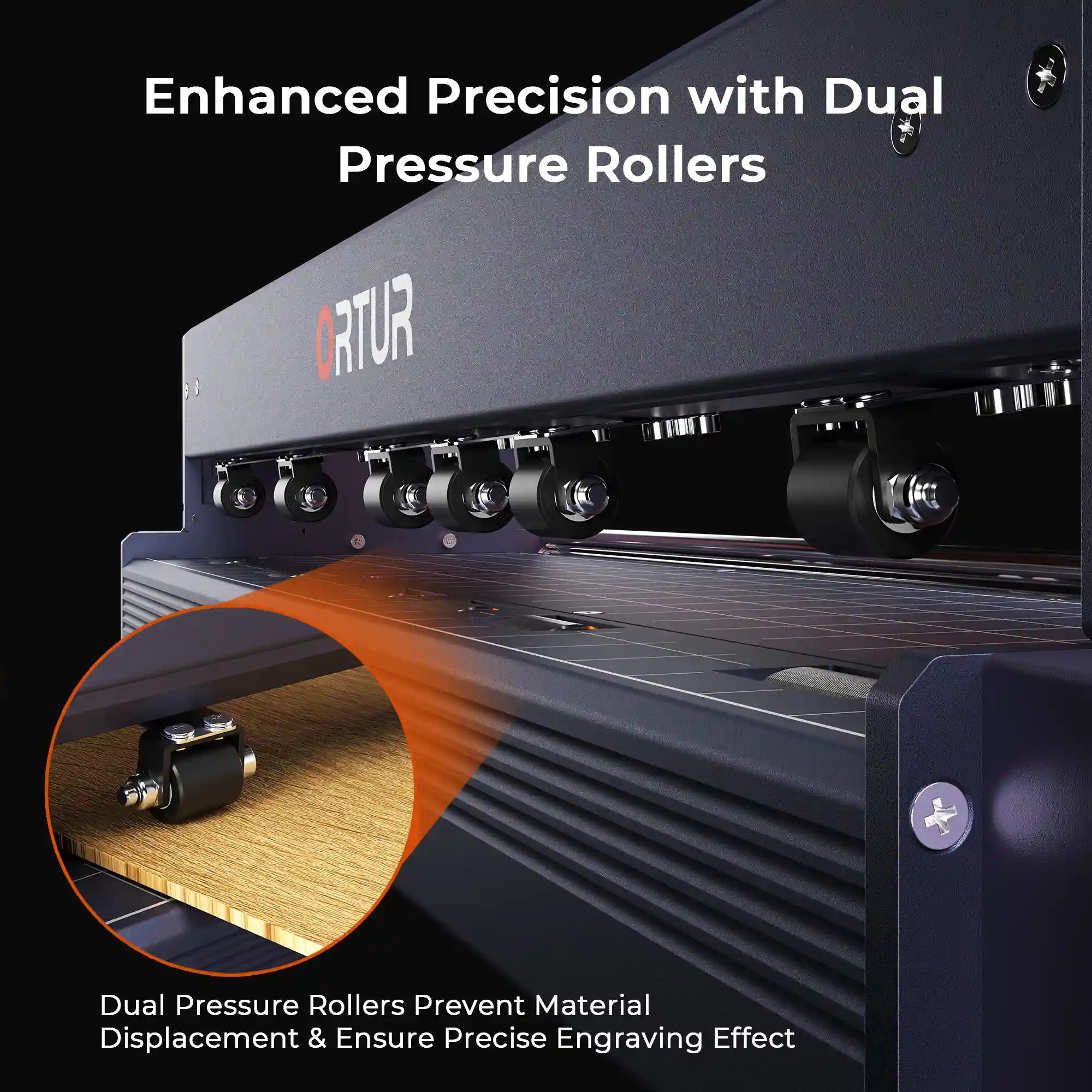

Dual Pressure Rollers for Precise Engraving Effect

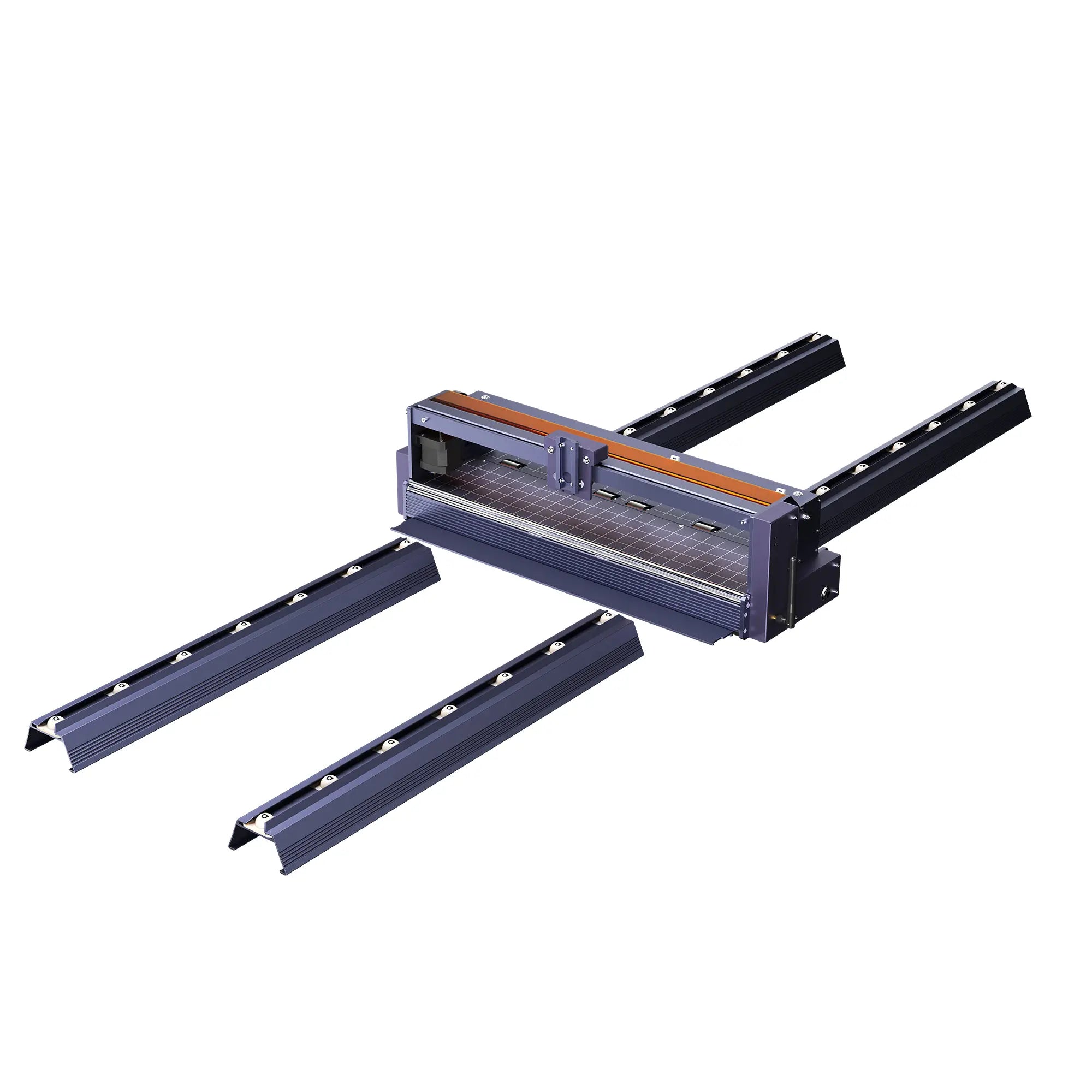

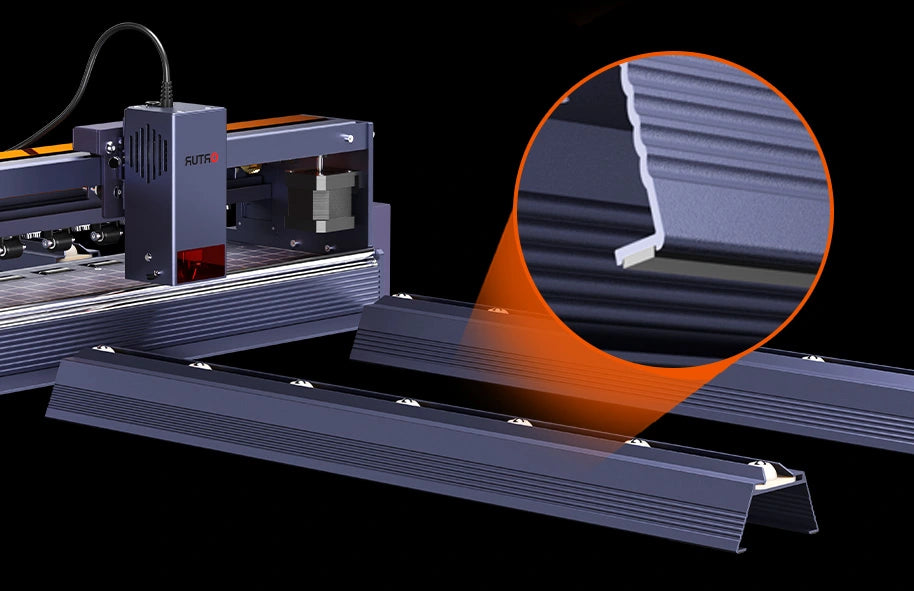

Stable and Secure Precision Support Stands

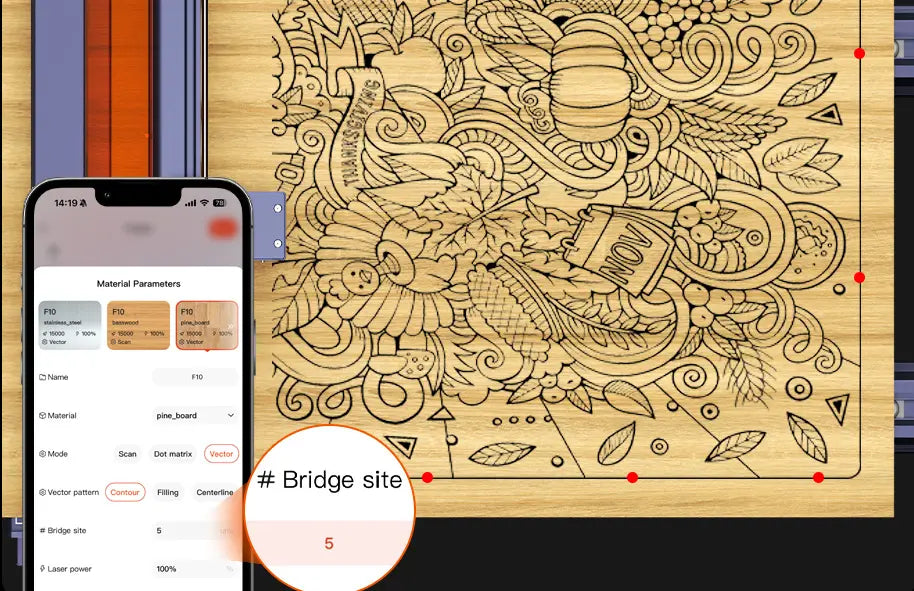

Automatic Pin-point Setting to Prevent Cutting Residues from Falling Out
Retractable Light Connection Plate for Table Protection

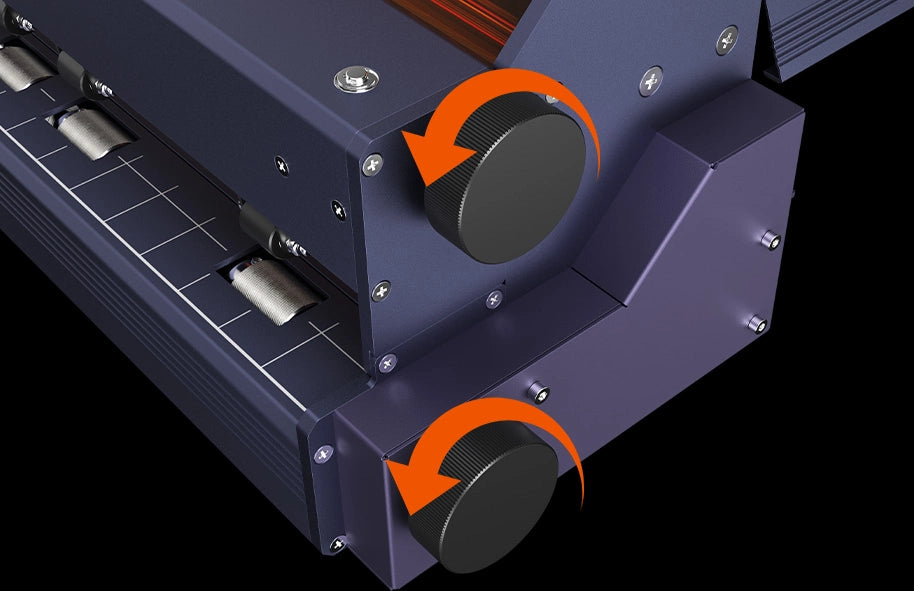

Knob for Easy Positioning Adjustment

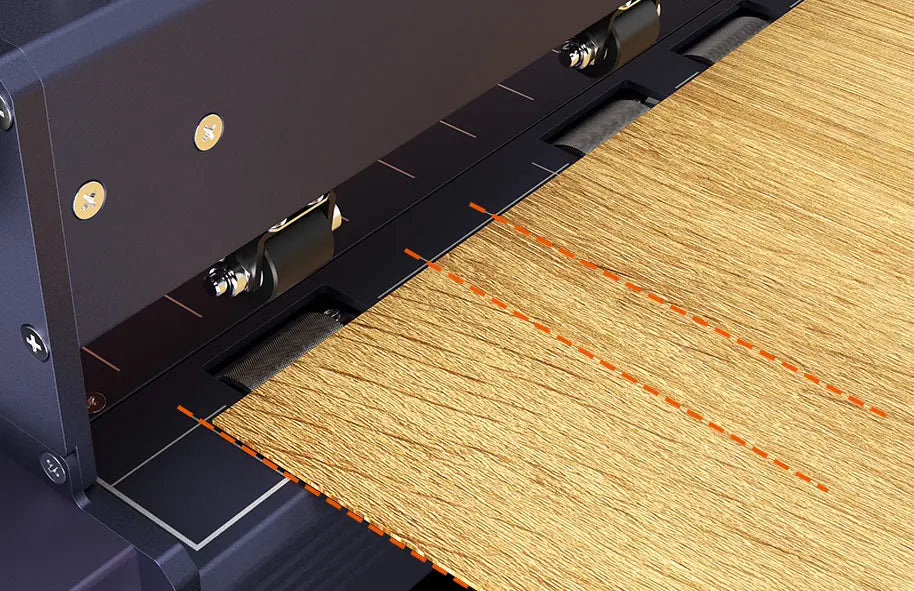

Aligning Grids for Precise Engraving and Cutting
| Laser Type | 40W Laser Module | 20W Laser Module | 10W Laser Module |
|---|---|---|---|
| Spot Size | 0.1mm*0.15mm | 0.1mm*0.12mm | 0.05mm*0.1mm |
| Cutting Ability | 15mm Black Acrylic, 15mm Plywood | 8mm Black Acrylic, 10mm Plywood | 5mm Black Acrylic, 8mm Plywood |
| Cuttable Materials | Paper、MDF、Plywood、Pine、Paulownia、Cardboard、Corrugated、Dark Acrylic、PVC、Knit、Cotton、ABS Plastics、Felt、Leather、Bamboo、Silica Gel | Paper、MDF、Plywood、Pine、Paulownia、Cardboard、Corrugated、Dark Acrylic、PVC、Knit、Cotton、ABS Plastics、Felt、Leather、Bamboo、Silica Gel | Paper、MDF、Plywood、Pine、Paulownia、Cardboard、Corrugated、Dark Acrylic、PVC、Knit、Cotton、ABS Plastics、Felt、Leather、Bamboo、Silica Gel |
| Engravable Materials | MDF、Plywood、Pine、Paulownia、Paperboard、Paper、Kraft Paper、Leather、Dark Acrylic、Cobblestone、Ceramics、Coated Metal、Plated Metal、Stainless Steel、Glass、Knit、Cotton、ABS Plastics、Bamboo、Silica Gel、Rubber、Ceramic Tile、Marble, Shale, Cement, Brick | MDF、Plywood、Pine、Paulownia、Paperboard、Paper、Kraft Paper、Leather、Dark Acrylic、Cobblestone、Ceramics、Coated Metal、Plated Metal、Stainless Steel、Glass、Knit、Cotton、ABS Plastics、Bamboo、Silica Gel、Rubber、Ceramic Tile、Marble, Shale, Cement, Brick | MDF、Plywood、Pine、Paulownia、Paperboard、Paper、Kraft Paper、Leather、Dark Acrylic、Cobblestone、Ceramics、Coated Metal、Plated Metal、Stainless Steel、Glass、Knit、Cotton、ABS Plastics、Bamboo、Silica Gel、Rubber、Ceramic Tile、Marble, Shale, Cement, Brick |
| Maximum speed | 20,000mm/min | 20,000mm/min | 20,000mm/min |
| Maximum Material Width | 480mm | 480mm | 480mm |
| Minimum Material Width | 65mm | 65mm | 65mm |
| Maximum Material Thickness | 15mm | 15mm | 15mm |
| Working Area | 400*3000mm (118''×15.75'' ) | 400*3000mm (118''×15.75'' ) | 400*3000mm (118''×15.75'' ) |
| Output Voltage | 24V/9A | 24V/6A | 24V/4A |
| Connection Way | USB/Wi-Fi | USB/Wi-Fi | USB/Wi-Fi |
| Wavelength | 445±5nm | 445±5nm | 445±5nm |

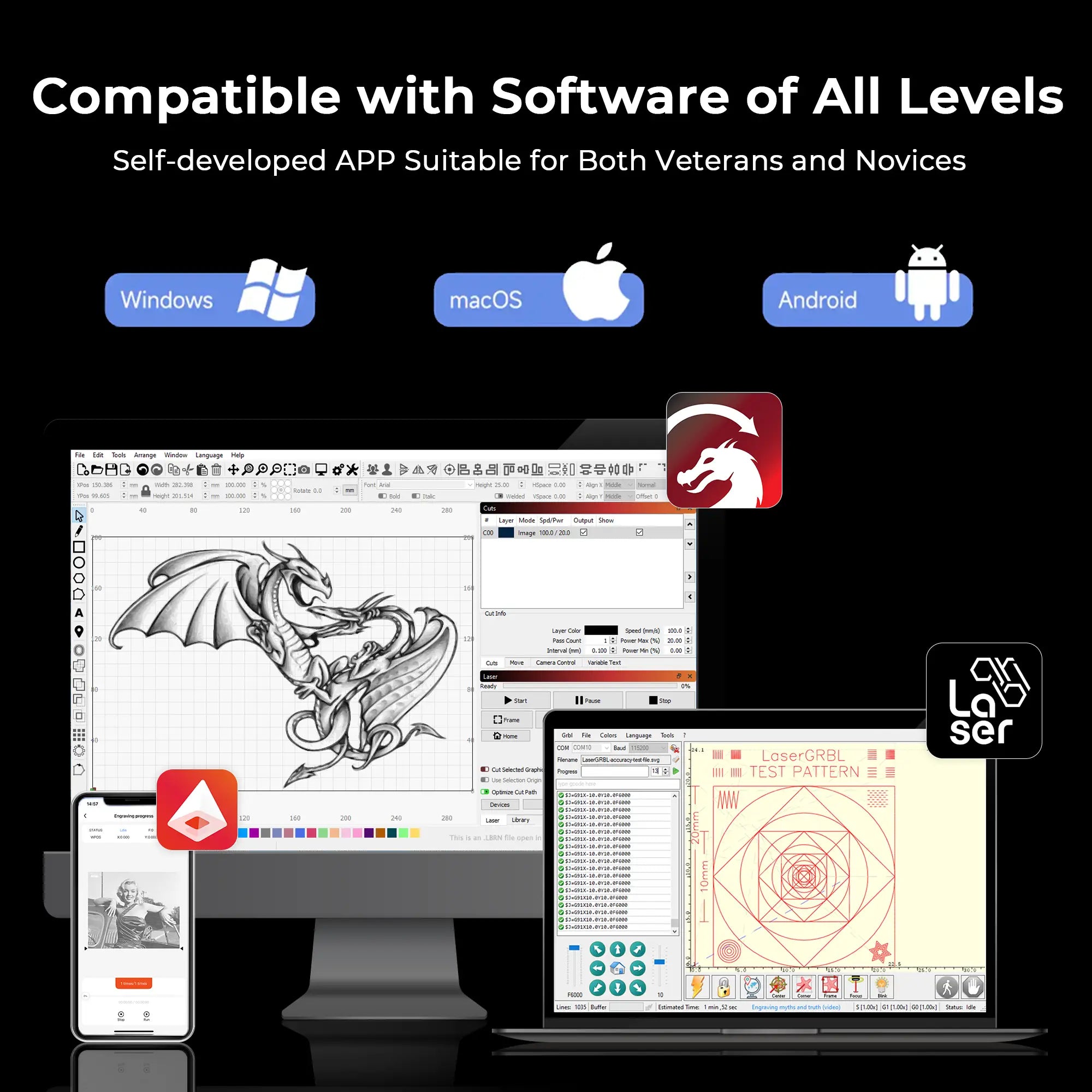

Software | Inspiraesth (self-developed App)/Lightburn/LaserGRBL | Inspiraesth (self-developed App)/Lightburn/LaserGRBL | Inspiraesth (self-developed App)/Lightburn/LaserGRBL |
FAQ
Is Ortur F10 compatible with other laser modules?
Yes. All Ortur laser modules are compatible with Ortur F10, e.g. LR4-2B, LU3-40A, LU3-20A, LU2-10A, LU2-4 SF, etc.
What is the maximum thickness of material supported by Ortur F10?
The maximum thickness of material is 15mm.
How do I ensure the material processing accuracy?
It is best to engrave or cut from flat materials that are free of warped edges, arched parts, or twists.
How to clean and maintain Ortur F10?
You can use a brush to clean some parts, such as the dule pressure rollers or the light connection plate. It is recommended to clean Ortur F10 by using tissues moistened with alcohol after using every time. If left uncleaned for a long time, the residual stains may become difficult to clean.
