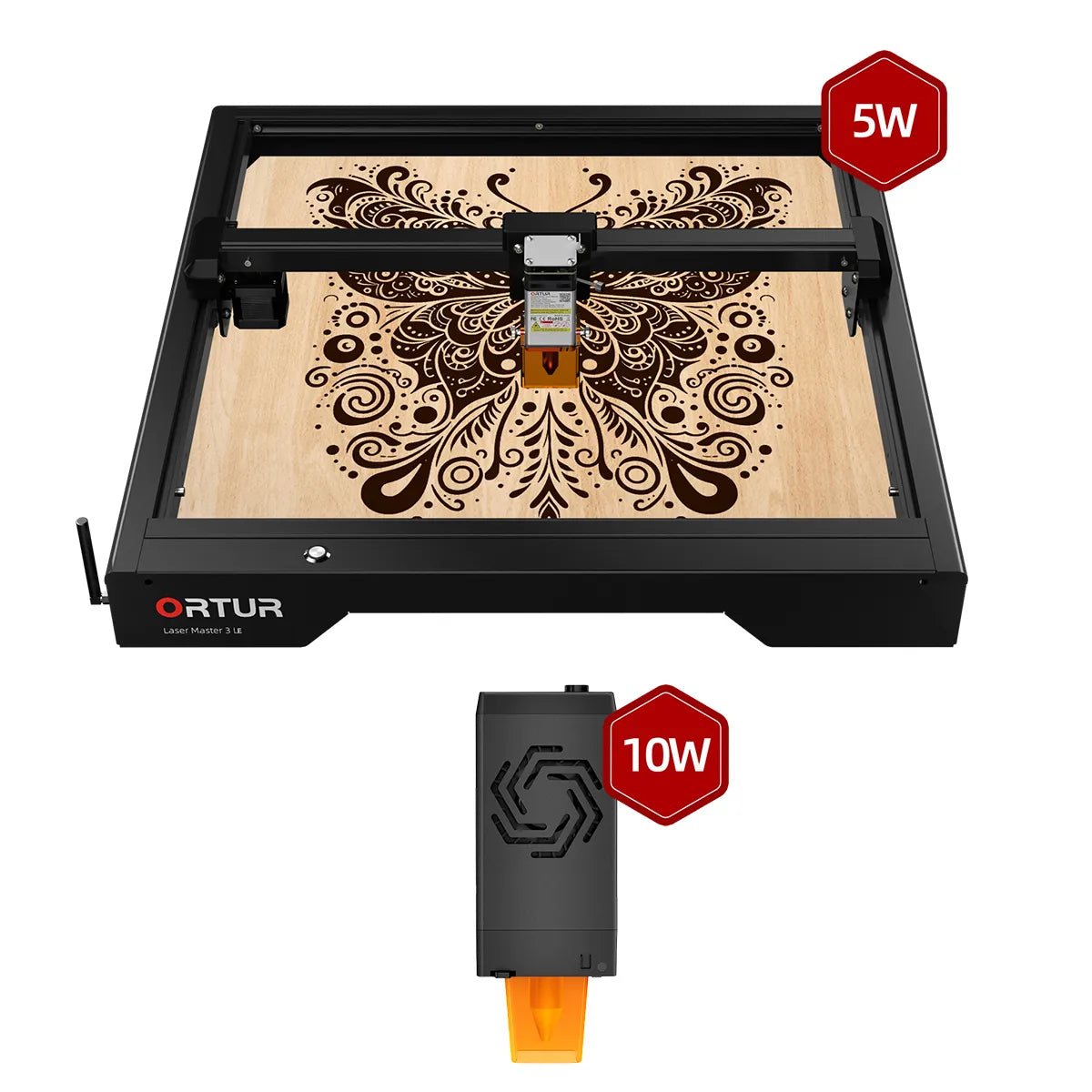

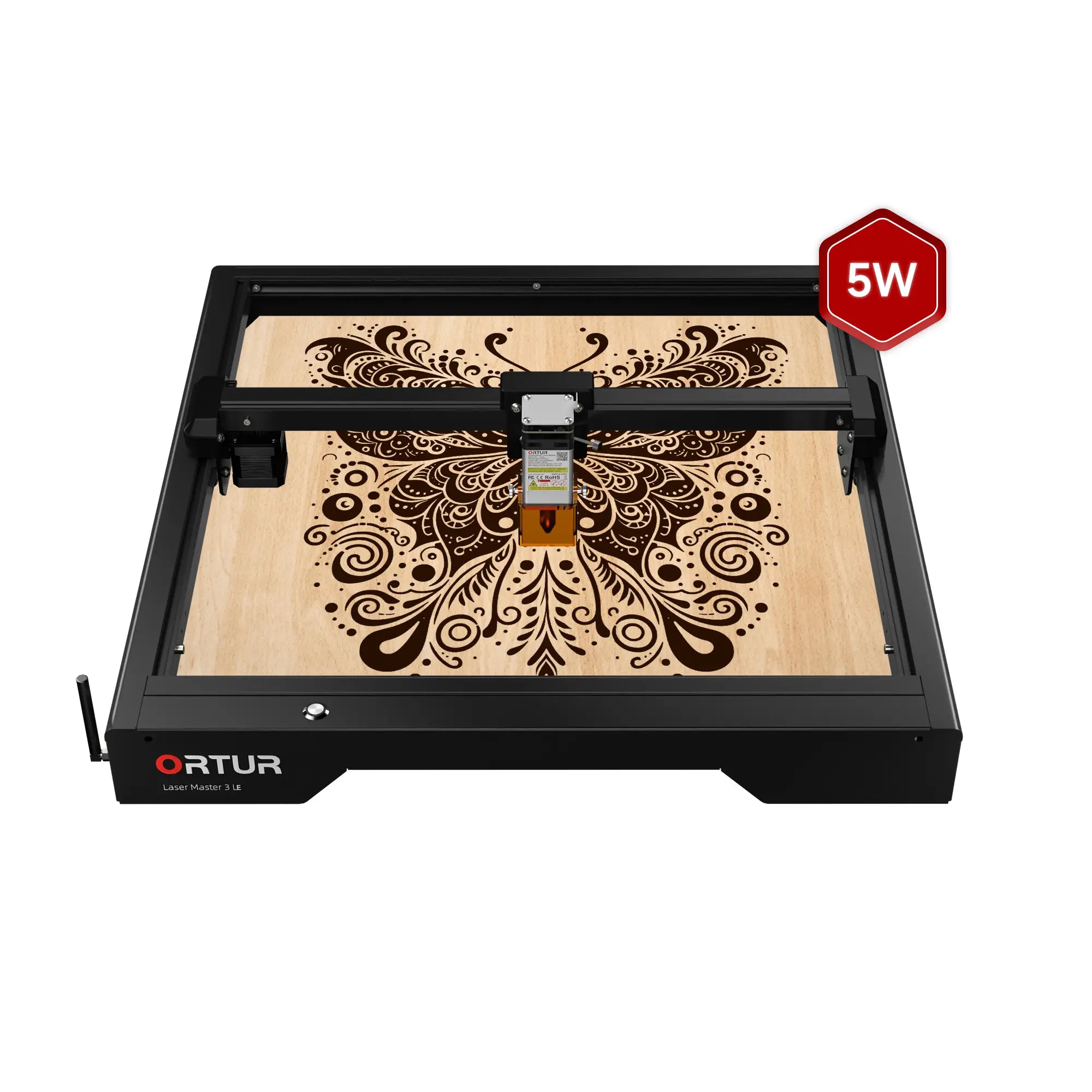

Ortur LM3 LE Laser Engraving & Cutting Machine 15,000mm/min (10W/5W)
- Engraving speed up to 15,000mm/min can save 1/3 of the time.
- High-quality silent motor, reduces vibration and noise, and prolongs motor life.
- Compatible with a variety of mainstream software, supports 'Inspiraesth' APP (Simple mode and Professional mode), USB, and WiFi mode.
- 5 safety functions to ensure the safety of the use environment.
- Compatible with a variety of accessories to meet 99% of engraving needs.
Stable & Lighter 10W Laser Module
The 4th Generation of Laser Spot Compression Technology
The 2nd Generation of Laser Diodes Combining Technology
Higher Precision
The Improved Mechanical Structure
Focal Spot 0.05x0.1mm
Bring Delicate Details at 0.01mm
12mm Wood Cutting in One-PASS
10mm Acrylic Cutting in One-PASS
Pine Board, Maximum Cutting Thickness 20mm
Acrylic Sheet, Maximum Cutting Thickness 30mm
Multiple Software Options To Match Your Needs
Inspiraesth offers a simple or professional mode selection for your every engraving stage.
Minimalism on Appearance
Ortur LM3 LE only retains the Home button on its frame. More compact body design without changing the engraving area to save open space. Deep night black color, a cooler option.
Silence
Adopt TMC2209 silent drive, with 256 times high subdivision. no noise and vibration when the motor rotates.
Directly Engraving Original Pictures
Free from sophisticated desaturate processes, saving time, energy and more RAM space.
Product Specification
Ortur Laser Master 3
Ortur Laser Master 3 LE
Ortur Laser Master 3 LE
LU2-10A
LU2-10A
LU2-4-SF/LF
Fully-enclosed
Semi-enclosed
Semi-enclosed
20,000mm/min
15,000mm/min
15,000mm/min
658*625*150mm
614*588*128mm
614*588*128mm
400*400mm
400*400mm
400*400mm
400*850mm
9.5-10.5W
9.5-10.5W
4.5-5.5W
40W
40W
20W
445+5nm
445+5nm
445+5nm
0.05*0.1mm
0.05*0.1mm
0.17*0.25mm(LF)
0.12*0.15mm(SF)
Square Spot
Square Spot
Square Spot
50mm
50mm
50mm(LF)
30mm(SF)
Aluminum+PC
Aluminum+PC
Aluminum
Class IV
Class IV
Class IV
>10,000h
>10,000h
>10,000h
7
5
5
WIFI/APP/USB/SD Card
WIFI/APP/USB/TF Card
WIFI/APP/USB/TF Card
Richer Application Scenarios
Basic Accessories
Significantly improves the engraving and cutting experience
Multi-mode Y-axis Rotary Chuck
Suitable for engraving and cutting most cylinders, spheres and rings
For Safer Engraving
Provide you with a more secure engraving and cutting experience
Package Lists
